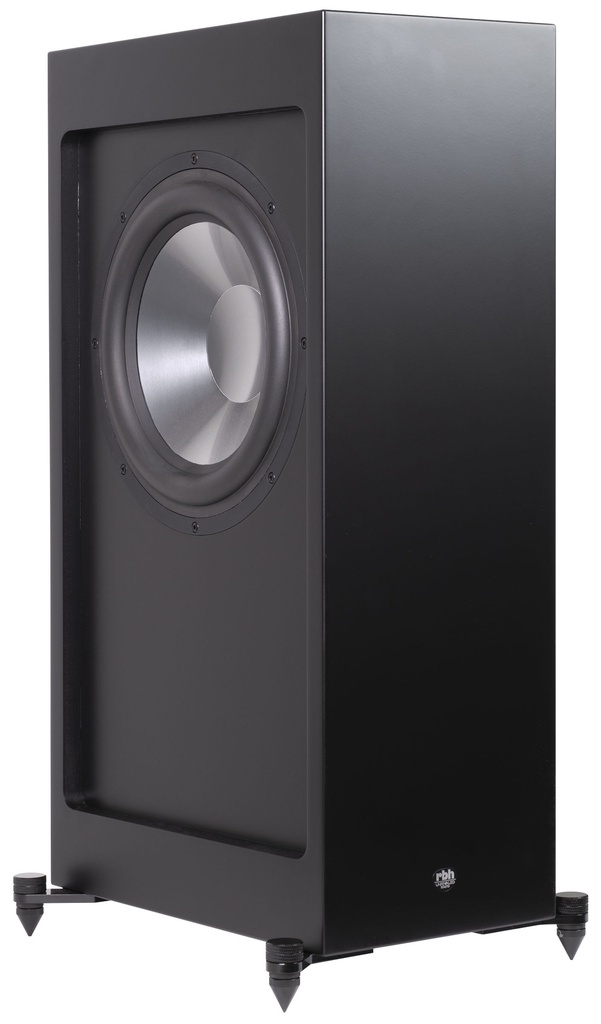

1212P-MS/R

Signature REFERENCE Dual 12 inch Powered Subwoofer Module
• dual 12" high powered aluminum woofers
• 2400 Watt Preprogrammed DSP Amplifier
• 9.75"W x 31.75"H x 16.5"D (without outriggers)
• magnetic grille included (3/4" MDF)
• black or white satin finish

Terms and Conditions

What do you get when you combine the power of our reference dual 12 inch subwoofers in a sleek and sealed cabinet? The 1212P-MS/R is a beautiful sight to behold. Perfect for music lovers who crave the tight accuracy of a sealed subwoofer, with plenty of power in reserve with the built in 2400 Watt amplifier. Primarily used as the base for the soon to be legendary SFTR system, but can be used as a standalone sub. With the beautiful Satin Black or Satin White finishes, any choice would be a pleasant decorative addition to any room.

(Click to enlarge)

1212-MS/R

SERIES

Signature Series Subwoofer Module

SYSTEM TYPE

Sealed Cabinet dual 12in Subwoofer

DRIVE UNITS

(2) 12" (305mm) Reference Aluminum Cone High Power

FREQUENCY RESPONSE

26Hz-150Hz ± 3dB

FREQUENCY RESPONSE when using DA Series Subwoofer Amplifier

20Hz-150Hz ± 3dB

SENSITIVITY

92 dB (2.83V @ 1 Meter)

AMPLIFIER TYPE

P-1602DSP or DA-1802DSP

AMPLIFIER POWER

2400 Watts DSP Adjustable

VOLTAGE

AC100V~AC240V~50/60Hz

RECOMMENDED POWER

500-1000 Watts

IMPEDANCE

4 Ohms

CROSSOVER FREQUENCIES

40Hz-150Hz (variable)

CROSSOVER SLOPE

12dB/Octave

LFE INPUT

Yes

LFE OUTPUT

Yes

PHASE CONTROL

Yes (variable)

CABINET DETAILS

High Density Fiberboard (HDF)

Satin Black or White Paint

GRILLE DETAILS

Magnetic Grille (black or white fabric)

FINISHED DIMENSIONS

13-1/4”W x 16-1/2”D x 31-3/4”H

(337mm x 419mm x 806mm)

WEIGHT

87.1 lbs. (39.5 kg)

WARRANTY

*10yr / 3yr amp limited

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

Brochure
