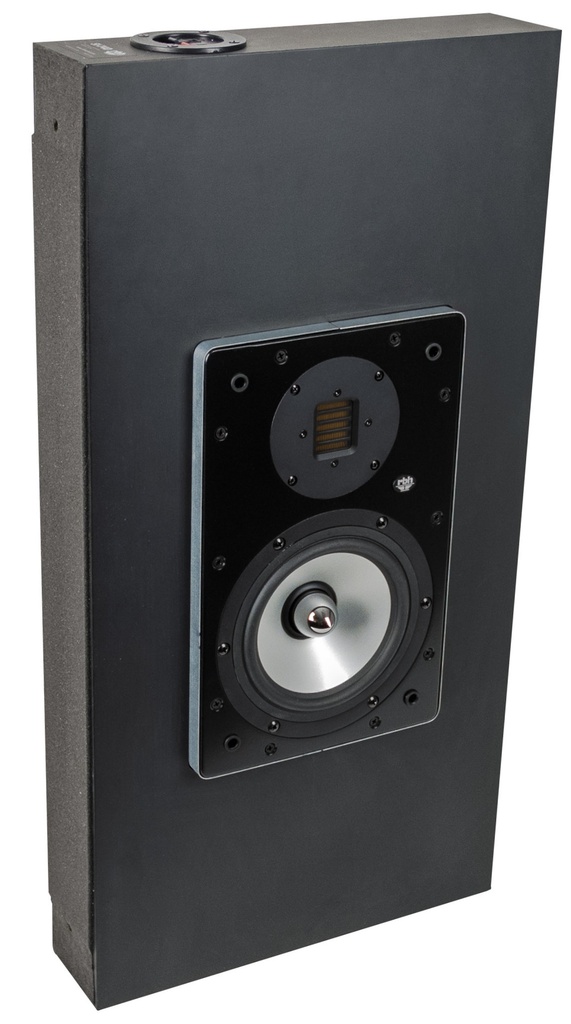

Reference 61-I Complete Set

Reference 61-I Complete Set

https://www.rbhsound.com/web/image/product.template/31756/image_1920?unique=0141475

Reference 2-way Baffle Assembly for in-wall speaker
• black satin finish
• 6.5" black-anodized phase plug woofers; AMT tweeter
• In-wall cabinet or Retrofit Bracket required / sold separately
• Fabric Grille optional / sold separately

(PRICE PER SINGLE)

Contact Us

Terms and Conditions

The Reference 61-I, the reference version of the 61-I, excels as main and surround speakers in an in-wall home theater system. Another example would be the use of 61-I as in-wall surround speakers to complement a pair of freestanding Signature Reference speakers.

(Click to enlarge)





Reference 61-I
SERIES
Reference Series | In-Wall Speaker
SYSTEM TYPE
Sealed / 2-way Speaker
DRIVE UNITS
(1) 6-1/2" (165mm) cast aluminum basket, aluminum cone woofer (sliver or black-anodized), with solid aluminum phase plug
(1) 1.38" X 1" (35mm x 25mm) AMT tweeter
FREQUENCY RESPONSE
60Hz-40kHz (±3dB)
SENSITIVITY
88dB (2.83V @ 1 Meter)
RECOMMENDED POWER
75-175 Watts
IMPEDANCE
8 Ohms
TWEETER PROTECTION
Yes
CROSSOVER FREQUENCY
2,700 Hz
CROSSOVER SLOPE
12dB/Octave
IN-WALL CABINET DETAILS
High Density Fiberboard (HDF)
Black Paint
14” x 28” x 3-1/2”
(356 x 711 x 89mm)
BAFFLE ASSEMBLY DETAILS
High Density Fiberboard (HDF)
Black Satin Paint
8” x 12-7/8” x 3-1/8"
(203 x 327 x 80mm)
GRILLE DETAILS
Black or White Fabric
FINISHED DIMENSIONS
14” x 28” x 4”
(356 x 711 x 102mm)
WEIGHT (total)
25 lbs (11.34 kg)
WARRANTY
*10 year limited
COMPONENTS
IN-WALL CABINET
61-I In-wall Cabinet
BAFFLE ASSEMBLY
61-I Baffle Assembly
GRILLE OPTIONS
61-I Grille Black (fabric)
61-I Grille White (fabric)
RETROFIT OPTIONS
61-I RB (retrofit bracket)
FB-W (foam back-box)

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

Brochure


BUILT IN THE USA

Engineering.  Design.  Performance.

For over 50 years, RBH Sound has designed and built loudspeakers in the USA with a singular focus - accurate sound reproduction, reliability, and timeless performance.  Every product is engineered with premium components and crafted with pride to deliver a listening experience that exceeds expectations.
