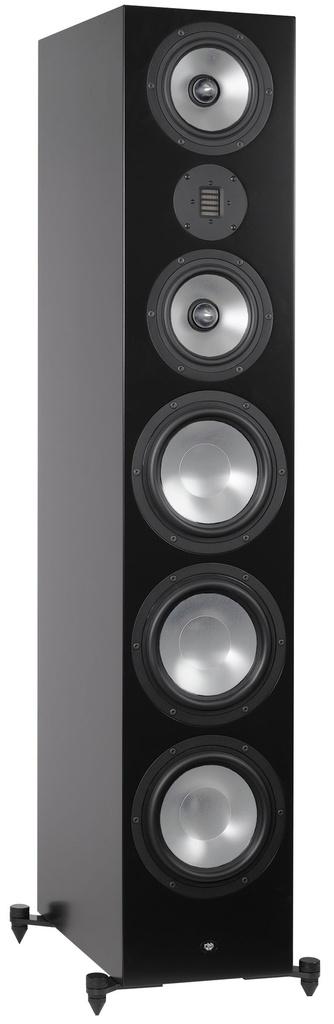

Reference 8300

Reference Freestanding Tower speaker
• 9.75"W x 52"H x17"D (not including grille or outriggers)
• magnetic grille included (1/2" MDF)
• black or white satin finish

(SOLD AS PAIR)

Terms and Conditions

The 3-way Reference 8300 flagship tower speaker features RBH’s award-winning aluminum cone technology and easily outperforms tower speakers costing much more. The 8300 lets its listeners experience their favorite movies and music in a way never thought possible, until now. Remarkable full-range performance is provided by the aluminum cone 8-inch woofers and reference 6½-inch mid-range drivers and AMT tweeter. Dual rear-firing ports help the 8300 achieve its full-range response, and dual 5-way binding posts allow for increased performance through bi-amplification with a subwoofer amplifier such as DA-1202DSP.

(Click to enlarge)

Reference 8300

SERIES

Reference Series | Freestanding Speaker

SYSTEM TYPE

Tower Speaker

DRIVE UNITS

(3) 8” (203mm) cast aluminum basket, aluminum cone woofer (silver or black anodized)

(2) 6-1/2" (165mm) cast aluminum basket, aluminum cone woofer (sliver or black-anodized), with solid aluminum phase plug

(1) 1.38" X 1" (35mm x 25mm) AMT tweeter

FREQUENCY RESPONSE

25Hz-40kHz (±3dB)

SENSITIVITY

91dB (2.83 Volts @ 1 Meter)

RECOMMENDED POWER

100-500 Watts

IMPEDANCE

4 Ohms

CROSSOVER FREQUENCY

100 Hz, 2500 Hz

CROSSOVER SLOPE

24dB/Octave

CABINET DETAILS

High Density Fiberboard (HDF)

Satin Black or White Paint

GRILLE DETAILS

Magnetic Grille (black or white fabric)

FINISHED DIMENSIONS

9-3/4" x 52" x 17-1/4"

(248 x 1321 x 362mm)

WEIGHT

90.95 lbs (41.25 kg)

WARRANTY

*10 year limited

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

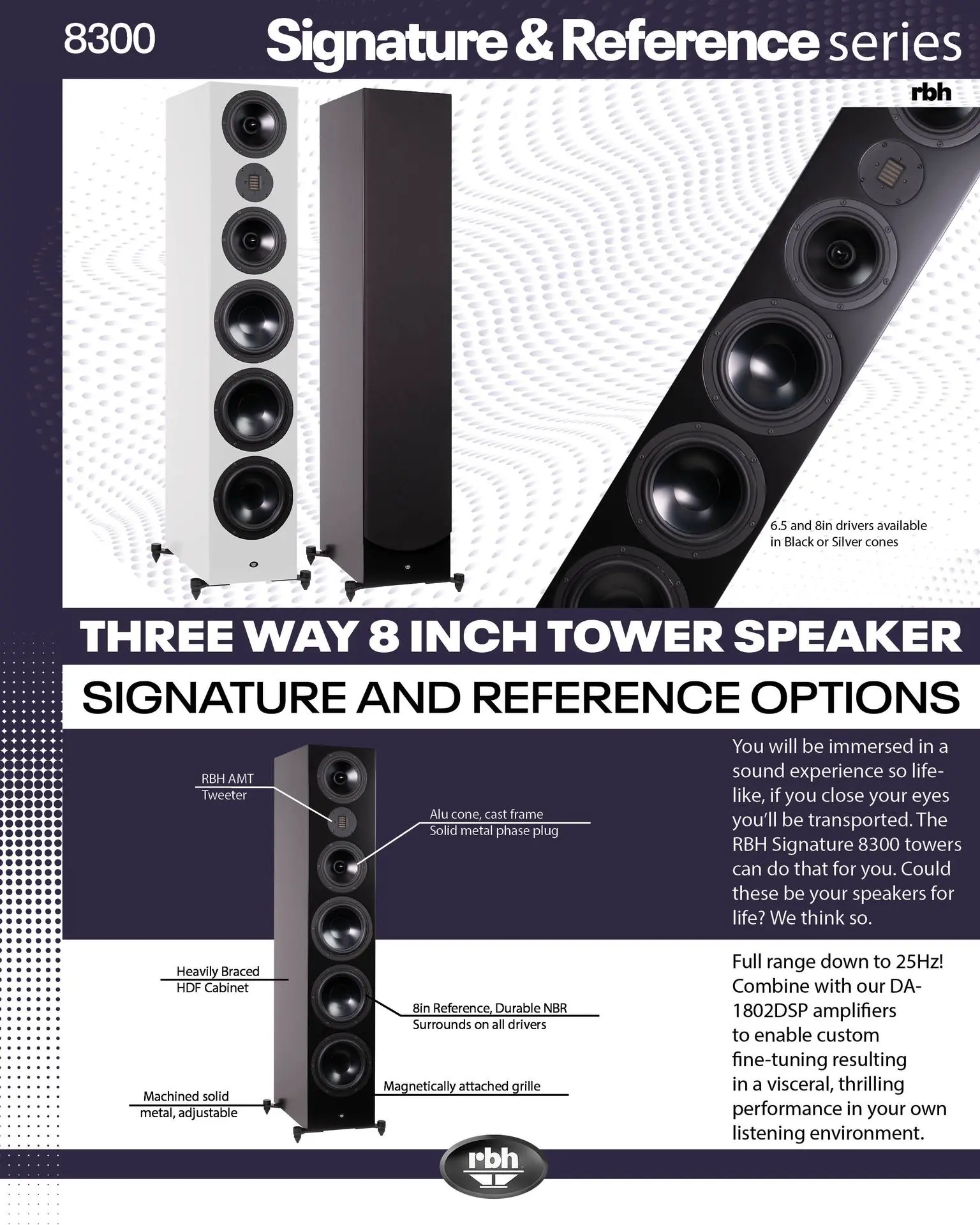

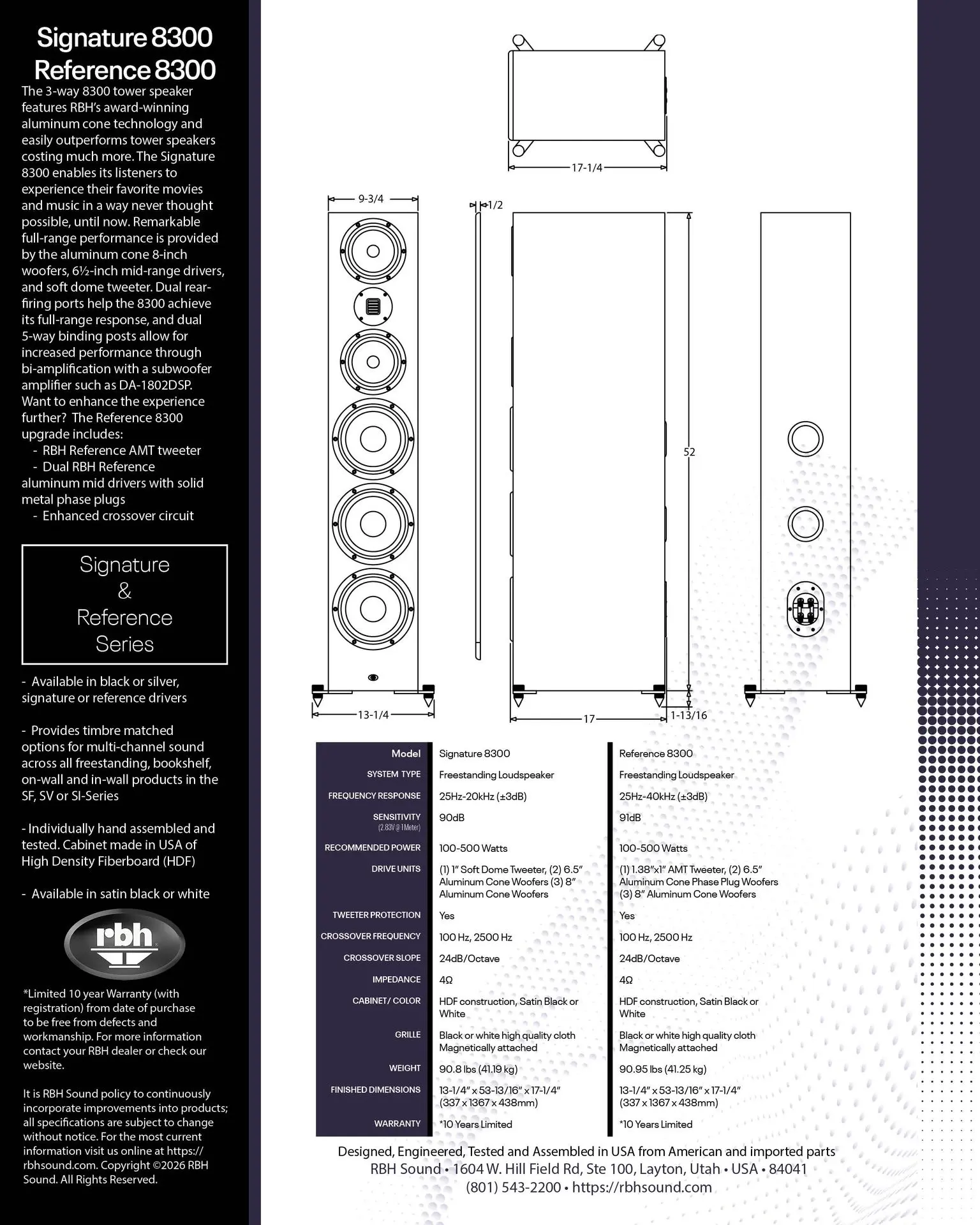

Brochure
