Reference 643-I BAFFLE ASSEMBLY

Reference 643-I BAFFLE ASSEMBLY

https://www.rbhsound.com/web/image/product.template/30817/image_1920?unique=af1ca29

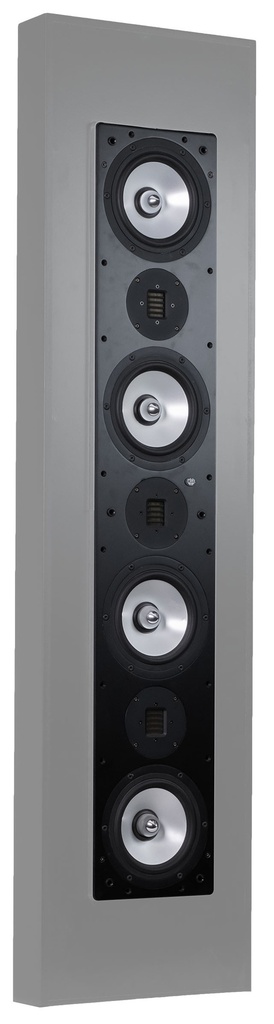

Reference 2-way Baffle Assembly for Reference 643-I in-wall speaker
• black satin finish
• quad 6.5"" black-anodized phase plug woofers; triple AMT tweeters
• In-wall cabinet required / sold separately
• Grille optional / sold separately (643-I Grille)

(PRICE PER SINGLE)

Contact Us

Terms and Conditions

For more info


(Click to enlarge)





SI-6100/R
SERIES
Signature Reference Series | In-wall Speaker
SYSTEM TYPE
Sealed / LCR 2-way Speaker
DRIVE UNITS
(4) 6-1/2" (165mm) cast aluminum basket, aluminum cone woofer (sliver or black-anodized), with solid aluminum phase plug
(3) 1.38" X 1" (35mm x 25mm) AMT tweeter
FREQUENCY RESPONSE
45Hz-40kHz (±3dB)
SENSITIVITY
93dB (2.83V @ 1 Meter)
RECOMMENDED POWER
75-450 Watts
IMPEDANCE
4 ohms
TWEETER PROTECTION
Yes
CROSSOVER FREQUENCY
2,500 Hz
CROSSOVER SLOPE
24dB/Octave
IN-WALL CABINET DETAILS
High Density Fiberboard (HDF)
Black Paint
14” x 56” x 3-1/2”
(356 x 1422 x 89mm)
BAFFLE ASSEMBLY DETAILS
High Density Fiberboard (HDF)
Black Satin Paint
8-1/8” x 44” x 3-1/8"
(206 x 1118 x 80mm)
GRILLE DETAILS
Black or White Fabric
FINISHED DIMENSIONS
14” W x 56” H x 4” D
(356 x 1423 x 102 mm)
WEIGHT (total)
64 lbs (29.02 kg)
WARRANTY
*10 year limited
COMPONENTS
IN-WALL CABINET
SI-6100 In-wall Cabinet
BAFFLE ASSEMBLY
SI-6100/R Baffle Assembly
Grille Options
SI-6100 Grille Black (fabric, treelock)
SI-6100 Grille White (fabric, treelock)
Retrofit Option
N/A

Brochure
