12P-SF/RS

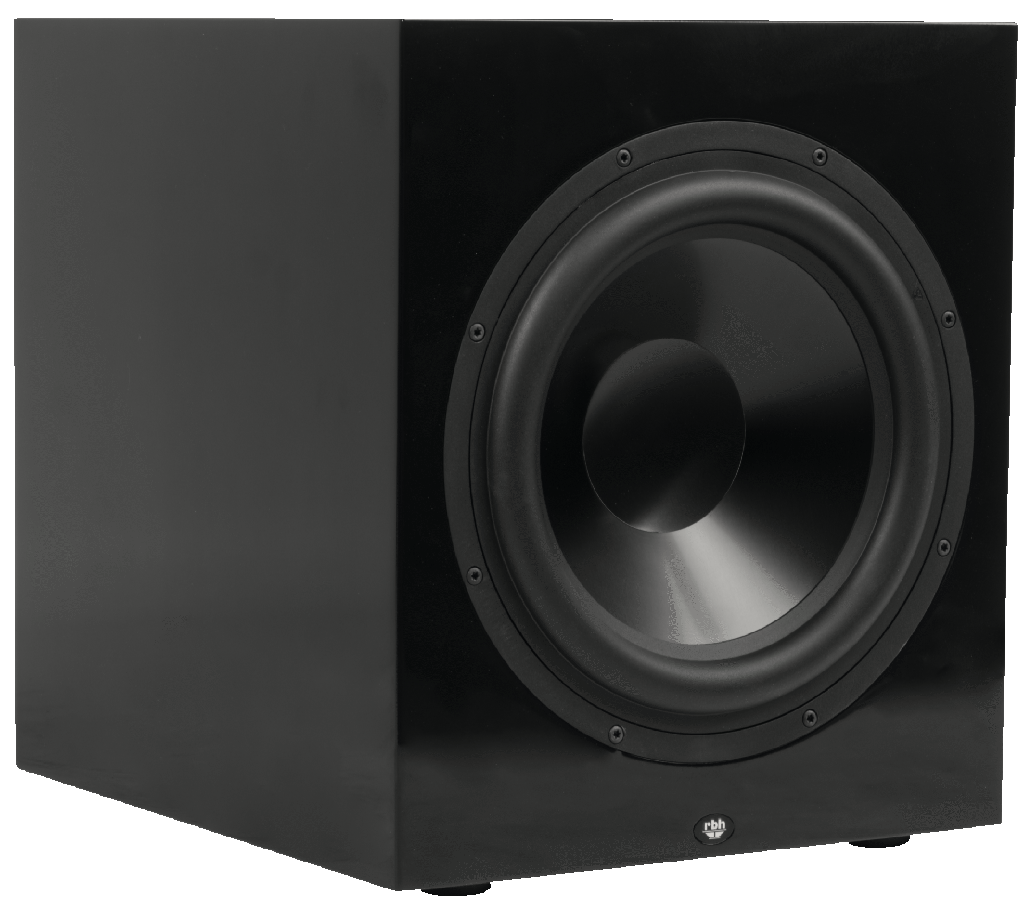

Signature REFERENCE 12P-SF/RS Freestanding Powered Subwoofer
• 15"W x 17.25"H x 18"D (not including grille)
• magnetic grille included (3/4" MDF)
• black or white satin finish
• 800 Watt DSP controlled amplifier

(PRICE PER SINGLE)

Terms and Conditions

Built to deliver tight and accurate musical bass with power, the 12P-SF/RS subwoofer is a welcome and conveniently placed “must have” to complete your home theater or 2 channel system. With the added benefit of class leading DSP, this subwoofer is tuned for the most linear response from the factory.

(Click to enlarge)

12P-SF/RS

SERIES

Signature Reference Series | Subwoofers

SYSTEM TYPE

Sealed, Cabinet, powered

DRIVE UNITS

(1) 12" (305mm) Reference Aluminum Cone Subwoofer

FREQUENCY RESPONSE

24Hz-120Hz (±3dB)

FREQUENCY RESPONSE when using DA Series Subwoofer Amplifier

N/a

SENSITIVITY

N/a

AMPLIFIER TYPE

(requires external amplification)

AMPLIFIER POWER

800 Watts

VOLTAGE

RECOMMENDED POWER

N/a

IMPEDANCE

N/a

CROSSOVER FREQUENCIES

80hz

CROSSOVER SLOPE

12dB/Octave

LFE INPUT

LFE OUTPUT

PHASE CONTROL

CABINET DETAILS

High Density Fiberboard (HDF)

Black or White Satin Paint

GRILLE DETAILS

Black or White Fabric / Magnet attached

FINISHED DIMENSIONS

15" W x 18-11/16" H x 21-3/16" D

381 W x 474 H x 538 D mm

WEIGHT

60.7 lbs (27.53kg)

WARRANTY

*10 year limited

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

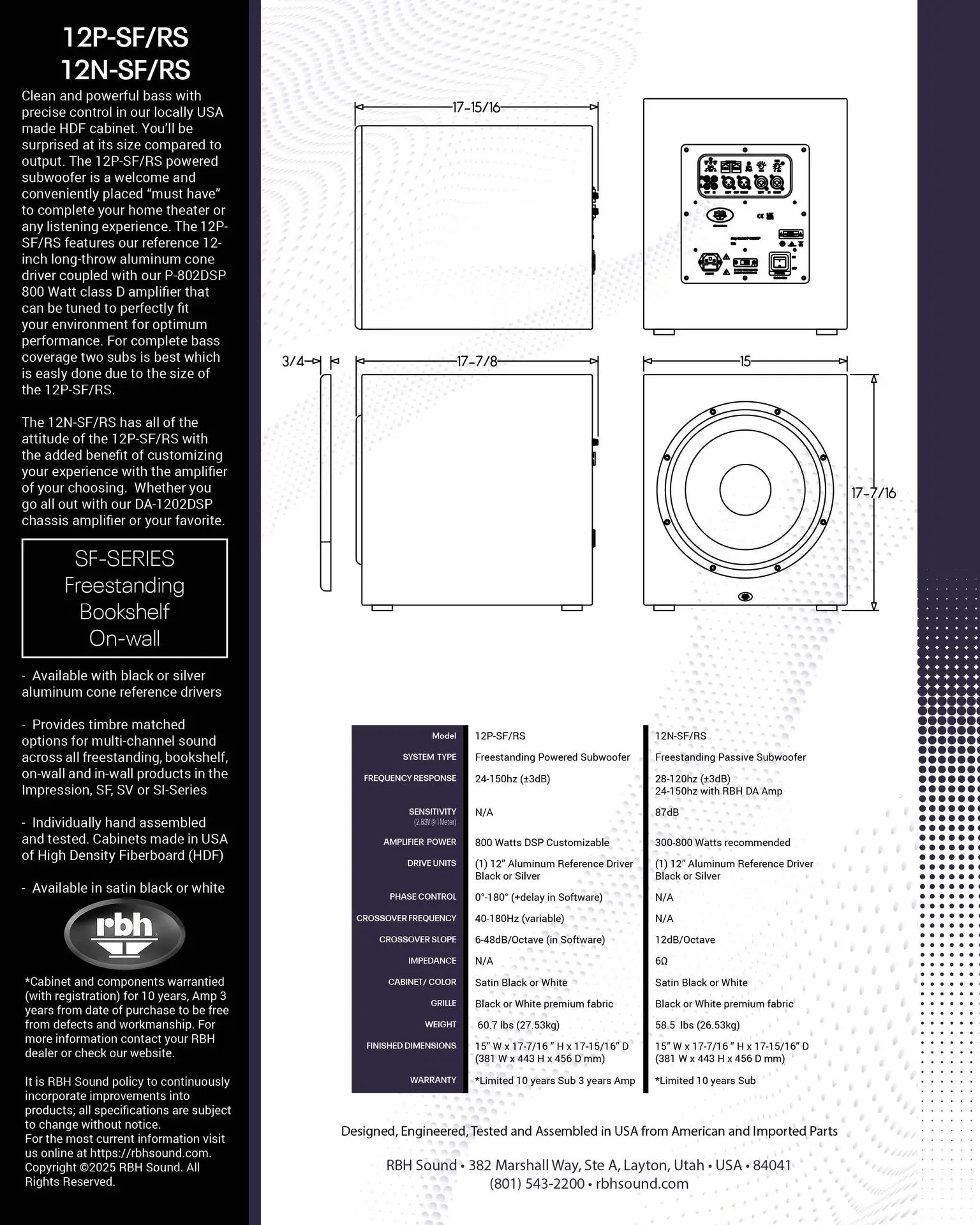

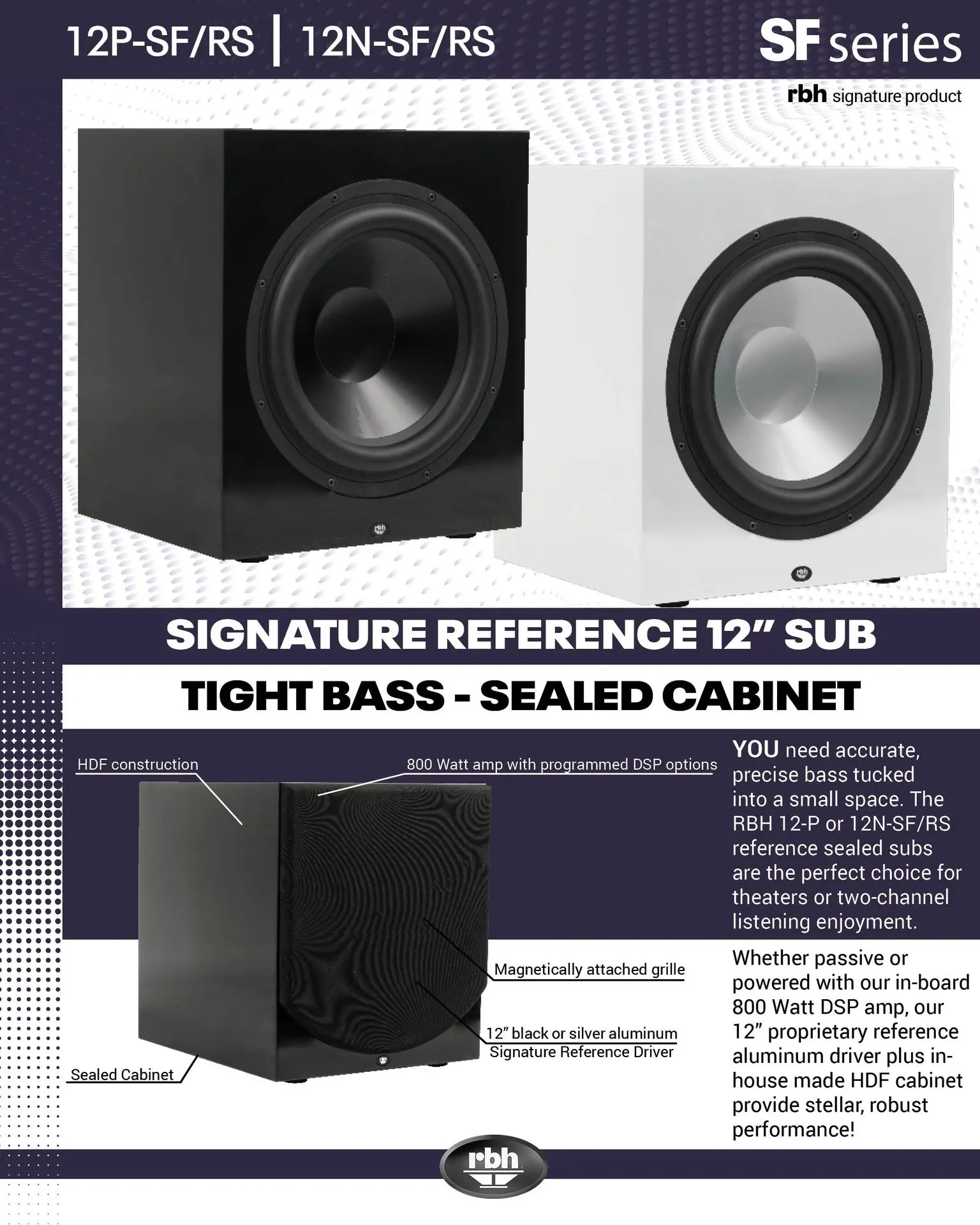

Brochure
