VF-615

Visage 2-way in-ceiling speaker with dual sound contour switches
• 6.5" fiberglass woofer; 1" aluminum dome swivel tweeter

Terms and Conditions

An upgrade to the sound performance of the VA-615, the in-ceiling VF-615 utilizes a woven fiberglass woofer and an aluminum dome swivel tweeter to offer uncompressed, accurate full-range sound. In addition to its unobtrusive design, the VF-615 also incorporates dual sound contour switches to allow the speaker’s sound quality to be optimized for each installation. This speaker is meant to be heard, not seen.

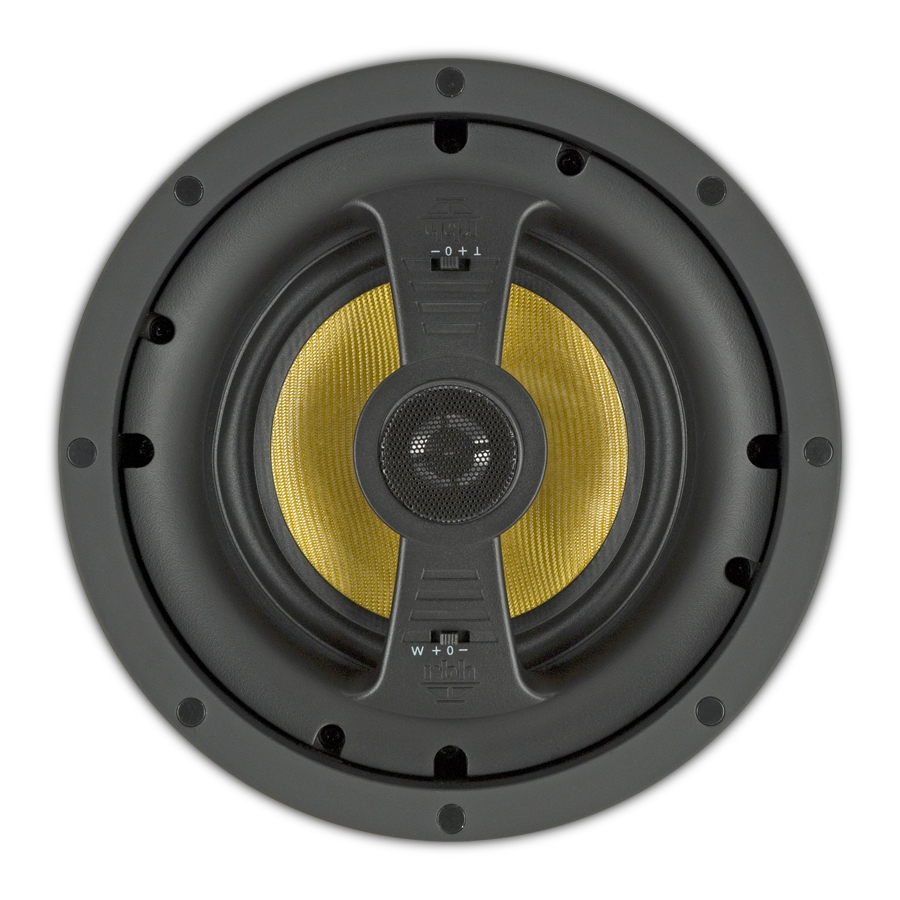

(Click to enlarge)

VF-615

SERIES

Visage VF Series

SYSTEM TYPE

In-ceiling 2-way

DRIVE UNITS

6-1/2" (165mm) Fiberglass Cone Woofer

1" (25mm) Aluminum Dome Swivel Tweeter

FREQUENCY RESPONSE

50Hz-20kHz ± 3dB

SENSITIVITY
(2.83 Volts @ 1 Meter)

90dB

RECOMMENDED POWER

15-100 Watts

IMPEDANCE

8 Ohms

TWEETER PROTECTION

Yes, self resetting poly-switch

CROSSOVER FREQUENCY

3,000 Hz

CROSSOVER SLOPE

12dB/Octave

ENCLOSURE

Black ABS Frame, Steel Perforated Basket, Dog-Leg mount

GRILLE

Magnetically Attached White Stainless-Steel

CUTOUT DIMENSIONS

7-3/4" Dia.

(197mm Dia)

FINISHED DIMENSIONS (WxHxD)

8-7/8" Dia x 4-3/8" D

(226 Dia x 112mm D)

WEIGHT

3.60 lbs (1.63kg)

WARRANTY

Lifetime Limited*

ACCESSORIES

Rear Enclosure

BC-6R / FB-C6

New Construction Bracket

NCB-6R

Blank Plate

BP-6R

Grille Options

Round or Square, White or Black in Stainless Steel
