Reference 1212
Reference Freestanding Subwoofer
• Dual Front Firing Port
• 15.75"W x 35.9375"H x 17.75"D (not including grille)
• magnetic grille included (3/4" MDF)
• 2400 Watt DSP Controlled internal amplifier or external amplifier (DA series amplifiers recommended)
• black or white satin finish
(PRICE PER SINGLE)
Built to deliver copious amounts of extremely deep and powerful bass with precise control, the Reference 1212 subwoofer is not for the faint of heart. The 1212 features two reference 12-inch long-throw aluminum cone drivers. These reference drivers provide extended frequency response, greater power handling and improved dynamic range. Designed for larger home cinema and listening environments, the 1212 delivers an incredible sonic and tactile experience to every movie or music listening session.
We recommend using the RBH DA-2602 subwoofer amplifiers for powering up to two of these subwoofer.
TECHNICAL SPECIFICATIONS
Model Name | Reference 1212 |
| System Type | Freestanding Powered/Passive Subwoofer |
| Series | Reference |
| Frequency Response | 22Hz-180Hz (±3dB) 18Hz-180Hz (±3dB) (with RBH Amplifier) |
| Sensitivity/Amplifier Power | 92dB 2400 Watts |
| Impedance | 4Ω |
| Recommended Power | 500-2400 watts |
| Crossover Frequencies | 40Hz-180Hz (variable) |
Crossover Slope | 6-84dB/Octave (in software) |
Features | Variable Phase, XLR Input & Output |
| Drivers |
|
| Enclosure | HDF |
| Finish | Satin Black or Satin White |

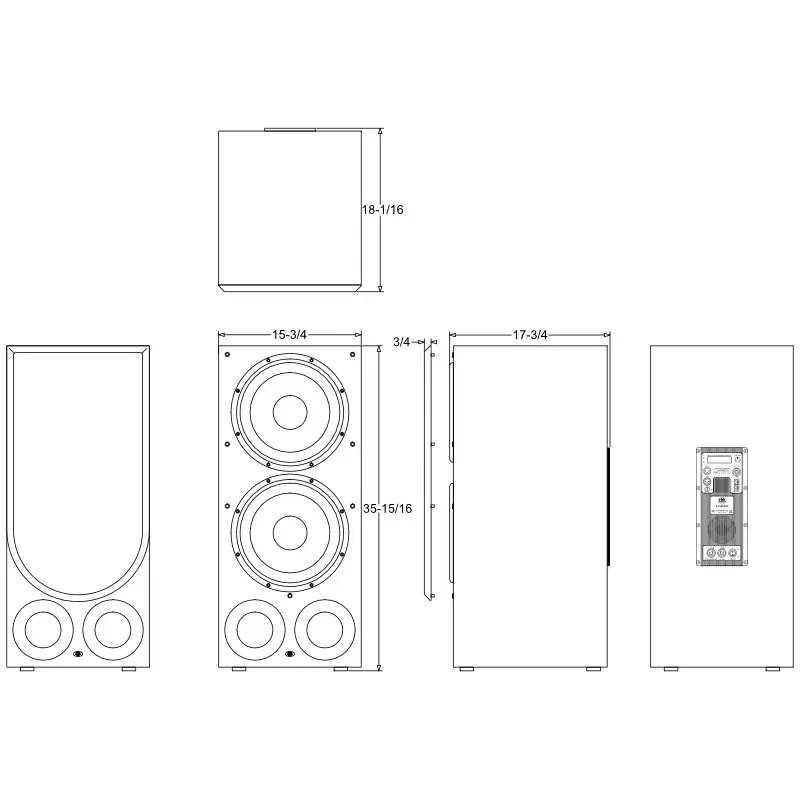

| Dimensions (H x W x D) | 35-15/16" x 15-3/4" x 17-15/16" (913 x 400 x 456mm) |
| Weight | 104lbs (47.17kg) 98lbs (44.45kg) |
| Warranty | 10 Year Limited |
BUILT IN THE USA
Engineering. Design. Performance.
For over 50 years, RBH Sound has designed and built loudspeakers in the USA with a singular focus - accurate sound reproduction, reliability, and timeless performance. Every product is engineered with premium components and crafted with pride to deliver a listening experience that exceeds expectations.
