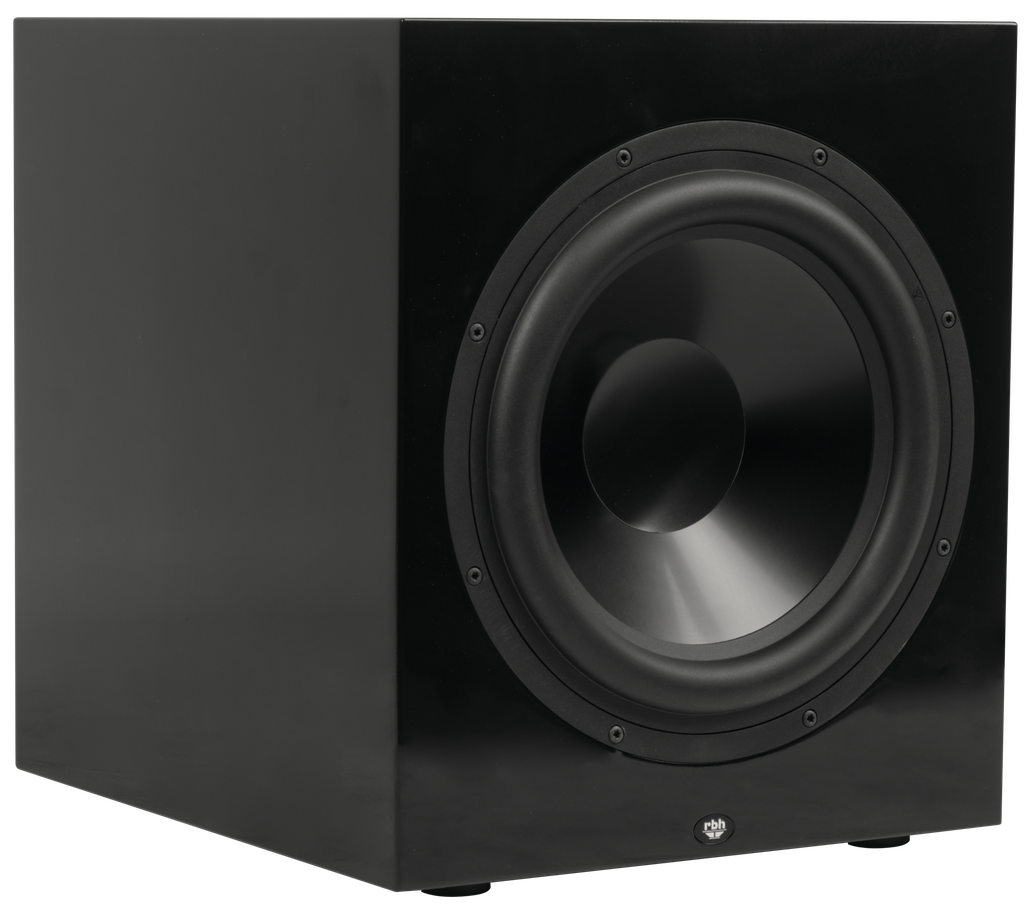

12N-SF/RS

Signature REFERENCE 12N-SF/R Freestanding Non-Powered Subwoofer
• Downfiring port
• 15"W x 18.6875"H x 20.875"D (not including grille)
• magnetic grille included (3/4" MDF)
• black or white satin finish
• external amplifier required (DA series amplifiers recommended)

(PRICE PER SINGLE)

Terms and Conditions

Built to deliver tight and accurate musical bass with power, the 12N-SF/RS subwoofer is a welcome and conveniently placed “must have” to complete your home theater or 2 channel system. The 12N-SF/RS has all of the perks of the 12P-SF/RS with the added benefit of customizing your experience with the amplifier of your choosing. Whether you go all out with our DA-1202DSP amplifier or provide your own, the power is in your hands.

(Click to enlarge)

12N-SF/R

SERIES

Signature Reference Series | Subwoofers

SYSTEM TYPE

Sealed, Cabinet, non-powered

DRIVE UNITS

(1) 12" (305mm) Reference Aluminum Cone Subwoofer

FREQUENCY RESPONSE

28Hz-120Hz (±3dB)

FREQUENCY RESPONSE when using DA Series Subwoofer Amplifier

24-120Hz (±3dB)

SENSITIVITY

N/a

AMPLIFIER TYPE

(requires external amplification)

AMPLIFIER POWER

300-800 watts recommended

VOLTAGE

RECOMMENDED POWER

N/a

IMPEDANCE

N/a

CROSSOVER FREQUENCIES

CROSSOVER SLOPE

12dB/Octave

LFE INPUT

LFE OUTPUT

PHASE CONTROL

CABINET DETAILS

High Density Fiberboard (HDF)

Black or White Satin Paint

GRILLE DETAILS

Black or White Fabric / Magnet attached

FINISHED DIMENSIONS

15" W x 18-11/16" H x 21-3/16" D

381 W x 474 H x 538 D mm

WEIGHT

58.5 lbs (26.53kg)

WARRANTY

*10 year limited

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

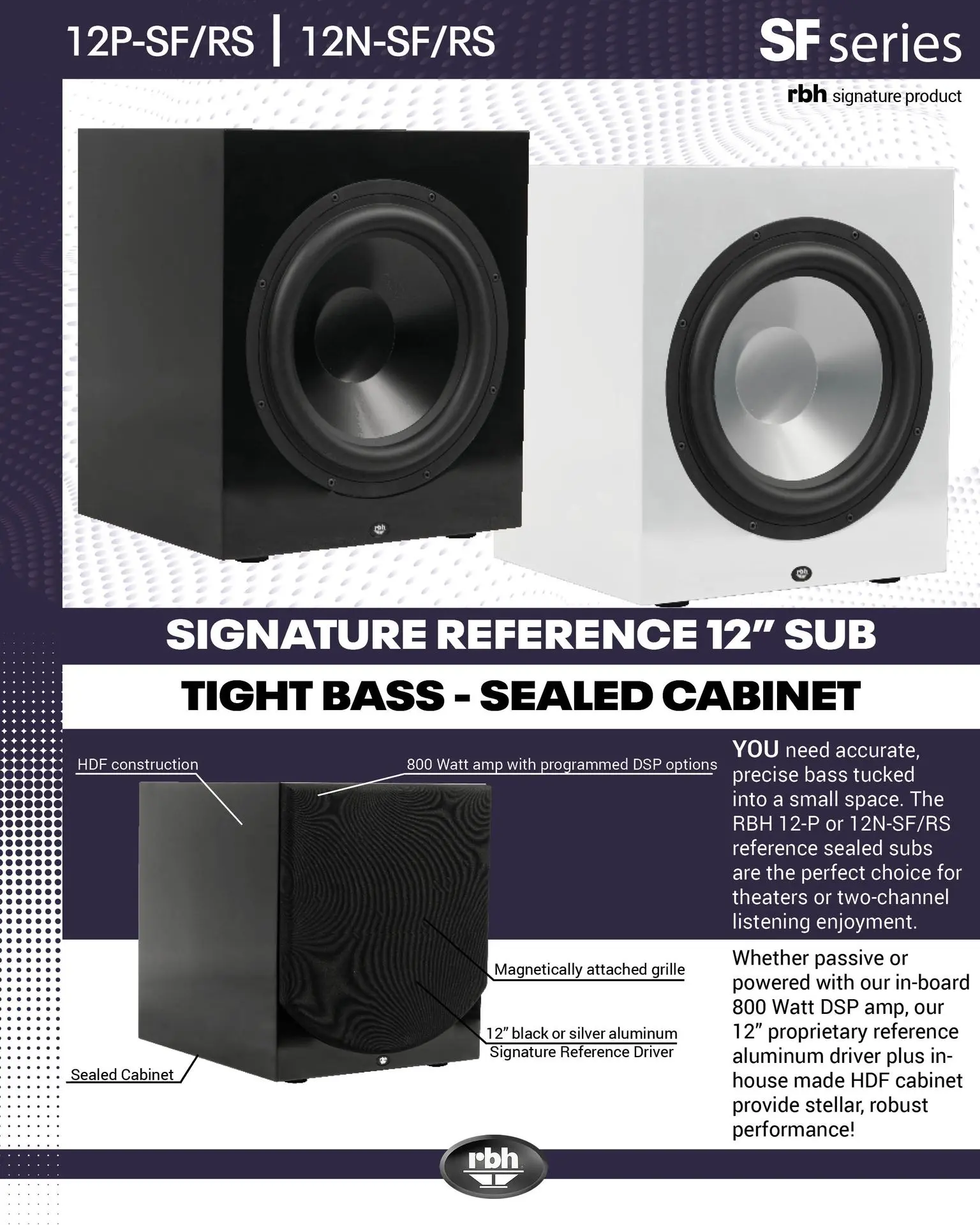

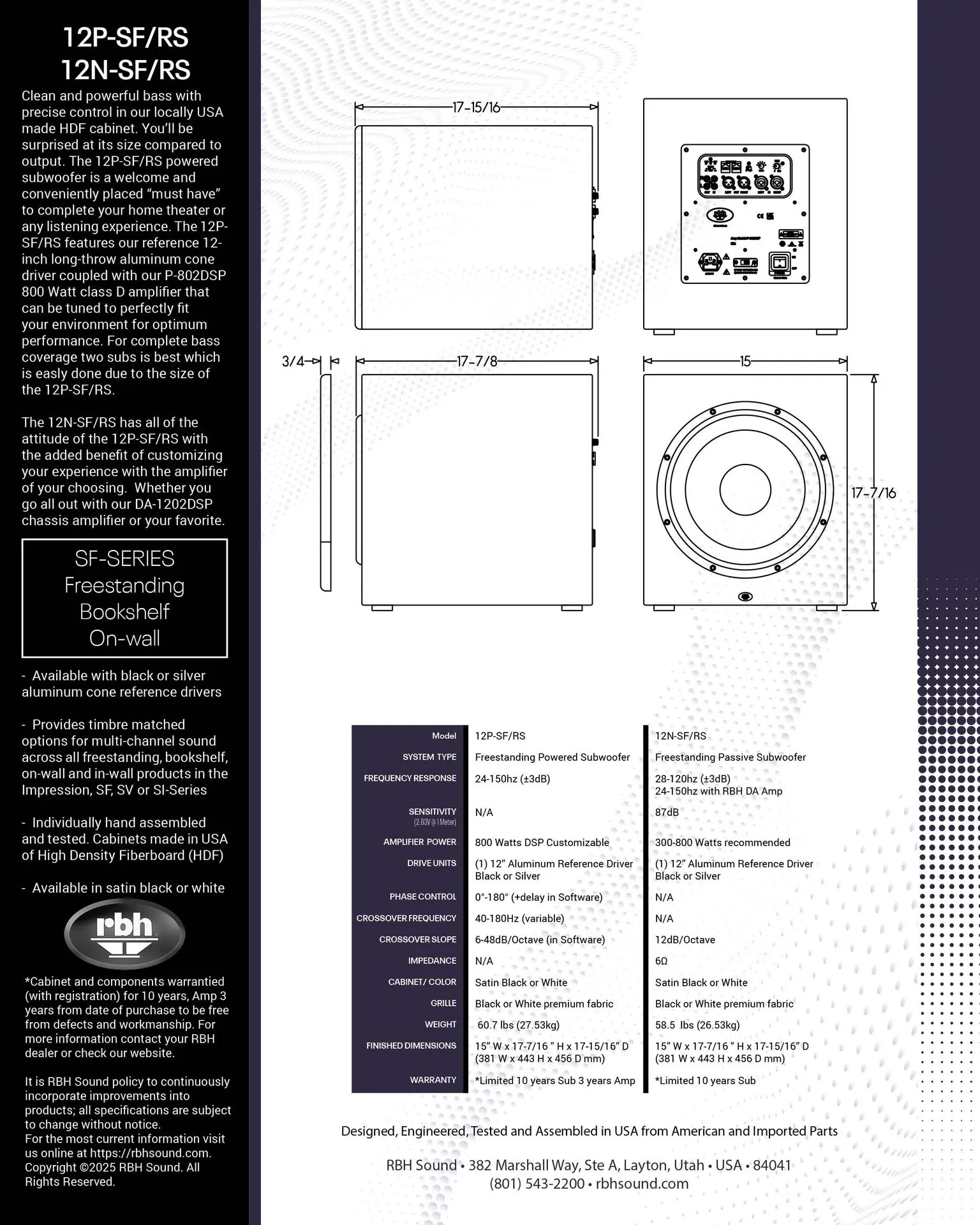

Brochure
