Reference 12-S

Reference Series Freestanding Sealed Subwoofer
• 15"W x 18.6875"H x 20.875"D (not including grille)
• magnetic grille included (3/4" MDF)
• black or white satin finish
• external amplifier required (DA series amplifiers recommended)

(PRICE PER SINGLE)

Terms and Conditions

Built to deliver tight and accurate musical bass with power, the Reference 12-S subwoofer is a welcome and conveniently placed “must have” to complete your home theater or 2 channel system. Whether you go all out with our DA-1202DSP amplifier or have the amplifier built in, the power is in your hands.

(Click to enlarge)

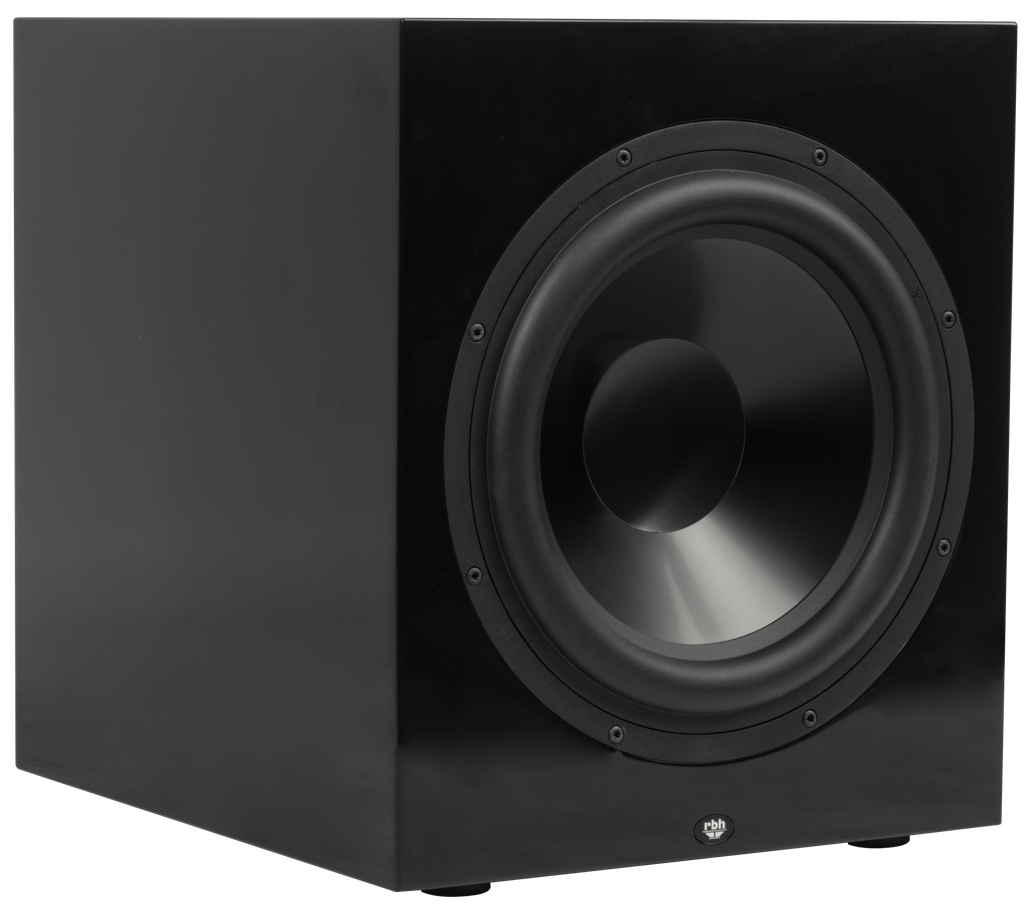

Reference 12-S

SERIES

Reference Series | Subwoofers

SYSTEM TYPE

Sealed, Cabinet, non-powered

DRIVE UNITS

(1) 12" (305mm) Reference Aluminum Cone Subwoofer

FREQUENCY RESPONSE

28Hz-120Hz (±3dB)

FREQUENCY RESPONSE when using DA Series Subwoofer Amplifier

24-120Hz (±3dB)

SENSITIVITY

87dB

AMPLIFIER TYPE

Internal or External

AMPLIFIER POWER

300-800 watts recommended

VOLTAGE

RECOMMENDED POWER

300-800 Watts

IMPEDANCE

6Ω

CROSSOVER FREQUENCIES

Variable

CROSSOVER SLOPE

Variable

LFE INPUT

Yes

LFE OUTPUT

Yes

PHASE CONTROL

DSP Controlled

CABINET DETAILS

High Density Fiberboard (HDF)

Black or White Satin Paint

GRILLE DETAILS

Black or White Fabric / Magnet attached

FINISHED DIMENSIONS

15" W x 18-11/16" H x 21-3/16" D

381 W x 474 H x 538 D mm

WEIGHT

58.5 lbs (26.53kg)

WARRANTY

*10 year limited

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

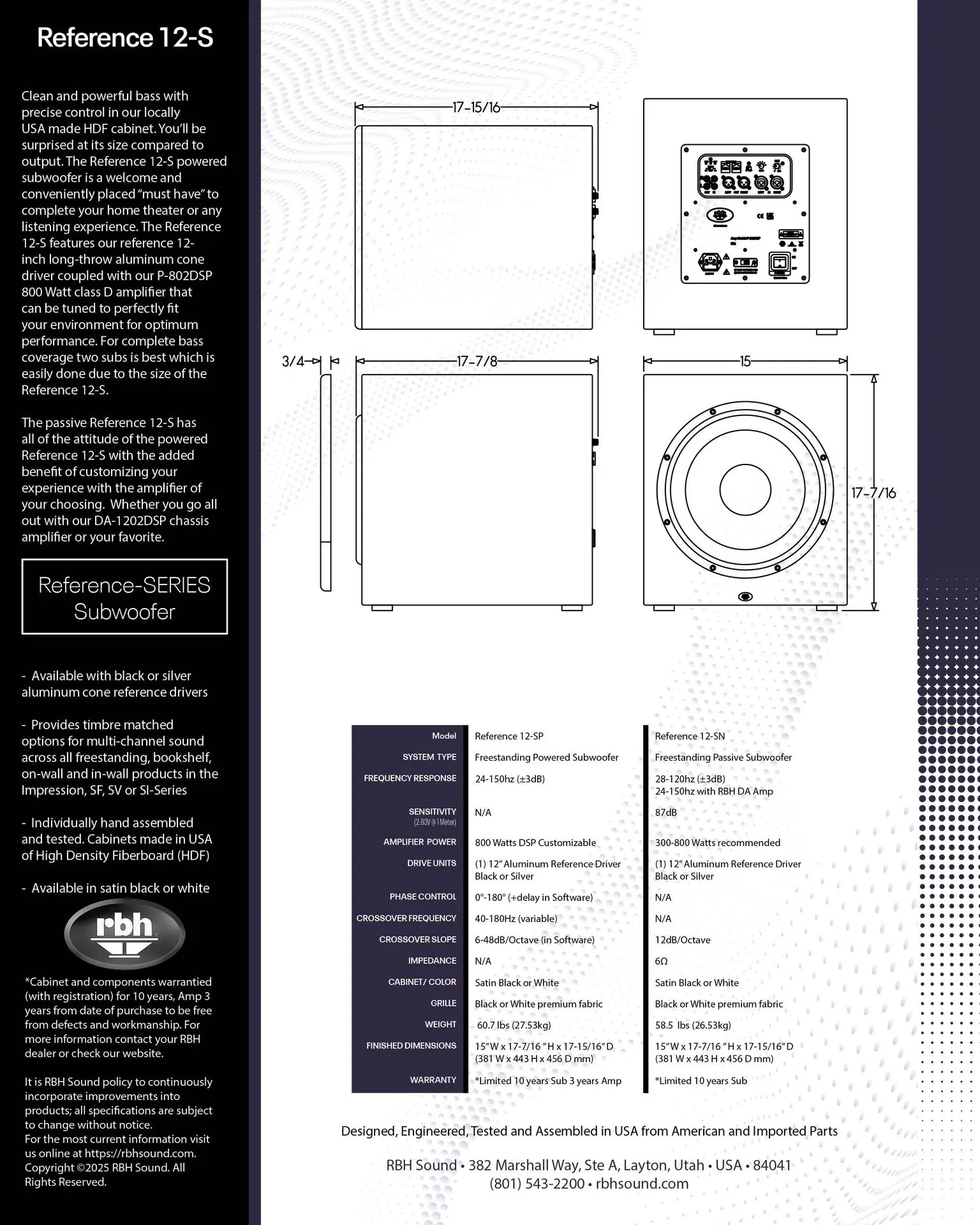

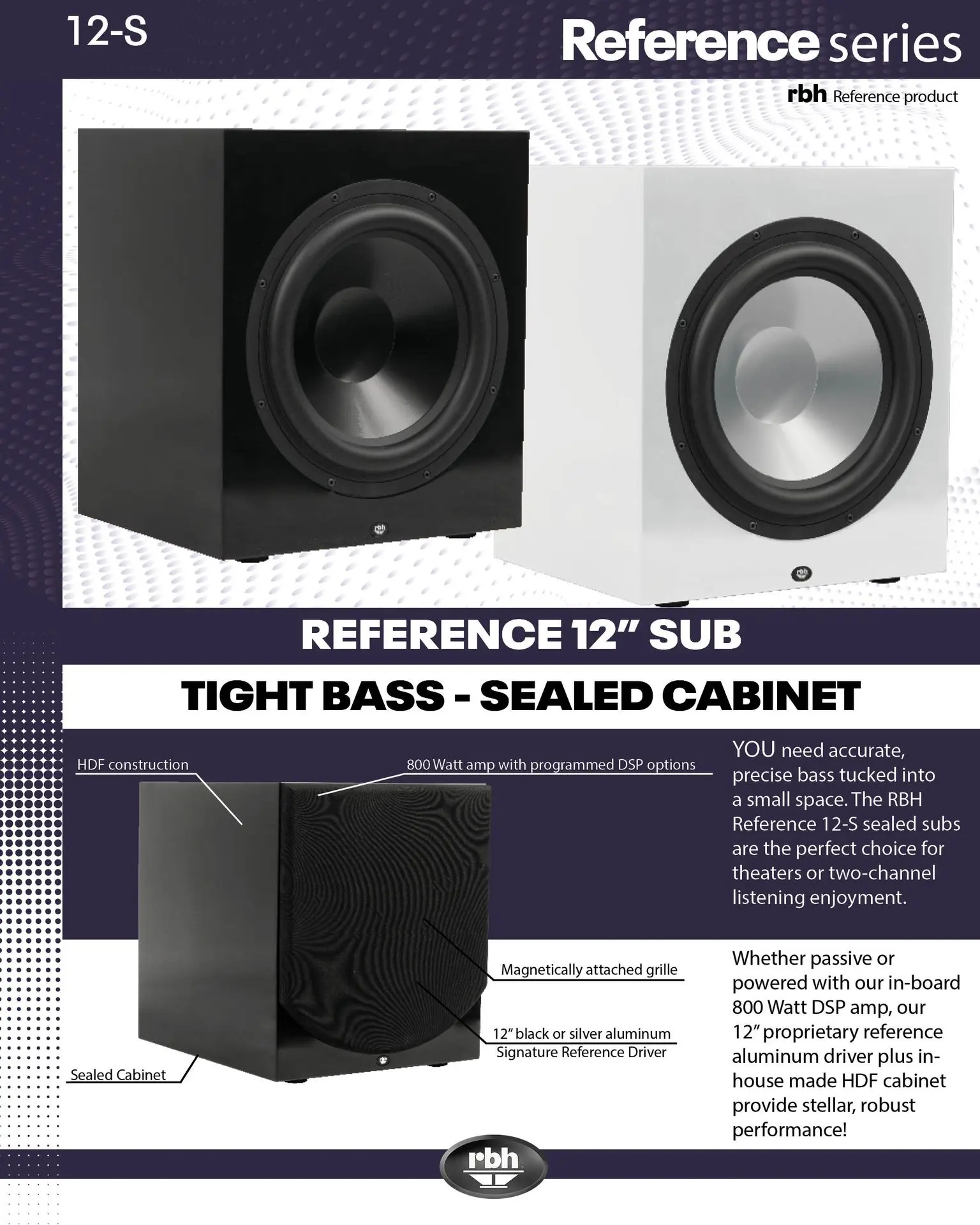

Brochure
