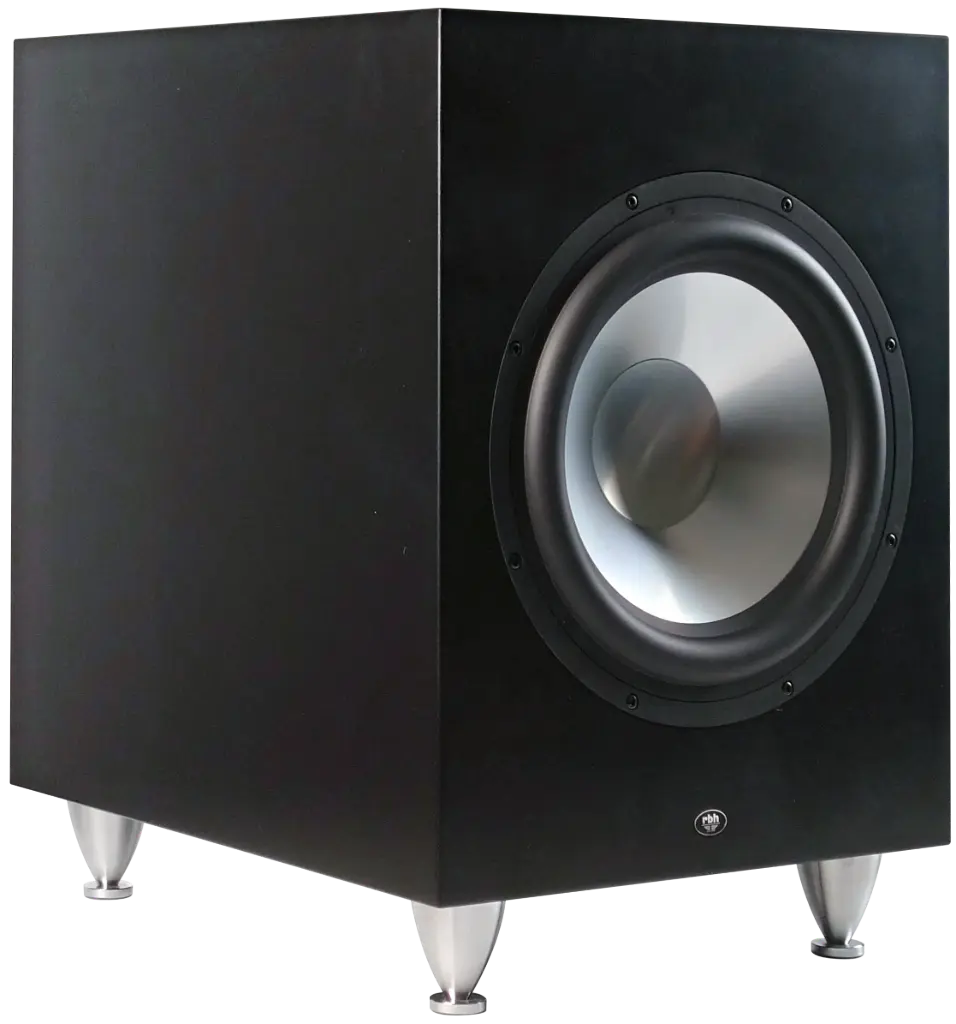

Reference 1212-S

Reference Dual 12 inch Subwoofer

• dual 12" high powered aluminum woofers

• 15.75"W x 23"H x 20"D

• magnetic grille included (3/4" MDF)

• black or white satin finish

Compact and powerful sealed subwoofer. With it's forward and down-firing 12" drivers, the Reference 1212-S is a beast at powerful musical bass with emphasized tactile response due to the down-firing driver.
Recommended to use with our DA series subwoofer amplifiers to unlock it's potential with the power of DSP and high output Class D amplification.

Coming Soon

Reference 1212-S

SERIES

Reference Series Subwoofer

SYSTEM TYPE

Sealed Cabinet dual 12in Subwoofer

DRIVE UNITS

(2) 12" (305mm) Reference Aluminum Cone High Power

FREQUENCY RESPONSE

26Hz-150Hz ± 3dB

FREQUENCY RESPONSE when using DA Series Subwoofer Amplifier

20Hz-150Hz ± 3dB

SENSITIVITY

92 dB (2.83V @ 1 Meter)

AMPLIFIER TYPE

P-1602DSP or DA-2602DSP

AMPLIFIER POWER

2400 Watts DSP Adjustable

VOLTAGE

AC100V~AC240V~50/60Hz

RECOMMENDED POWER

500-2400 Watts

IMPEDANCE

4 Ohms

CROSSOVER FREQUENCIES

40Hz-150Hz (variable)

CROSSOVER SLOPE

12dB/Octave

LFE INPUT

Yes

LFE OUTPUT

Yes

PHASE CONTROL

Yes (variable)

CABINET DETAILS

High Density Fiberboard (HDF)

Satin Black or White Paint

GRILLE DETAILS

Magnetic Grille (black or white fabric)

FINISHED DIMENSIONS

15-3/4”W x 20-3/4”D x 23”H

(400mm x 527mm x 584mm)

WEIGHT

87.1 lbs. (39.5 kg)

WARRANTY

*10yr / 3yr amp limited
