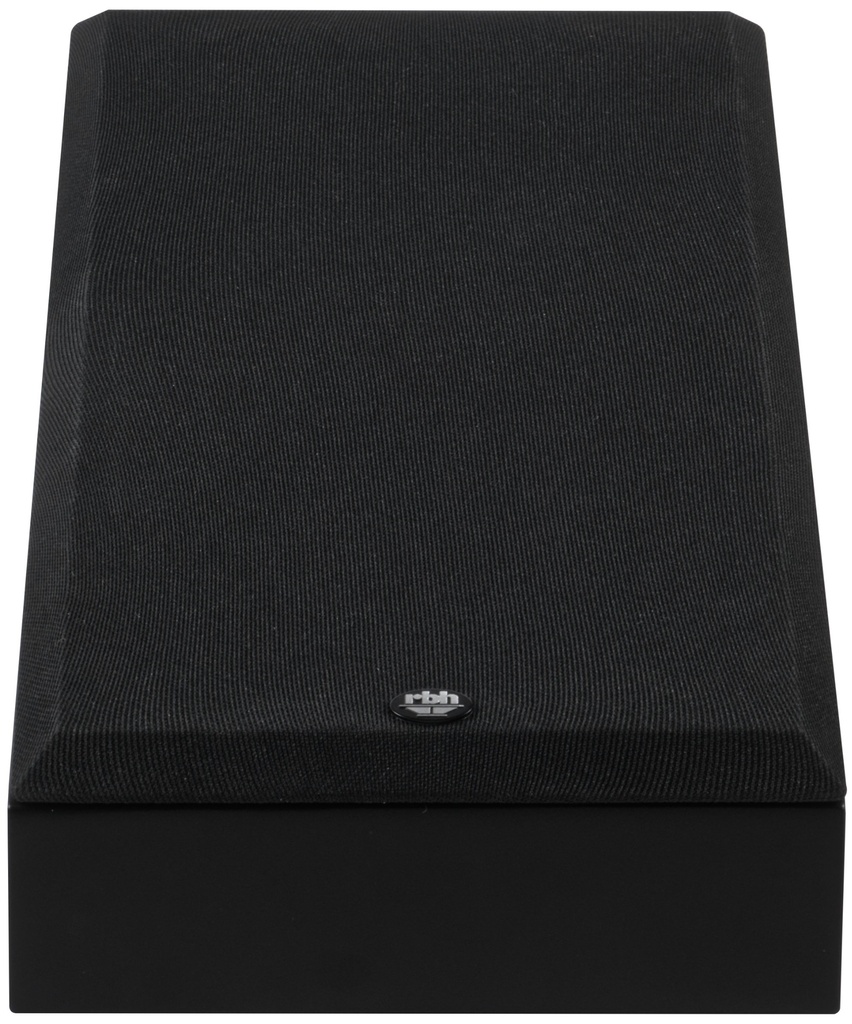

Reference 61-AW

Reference on-wall/on-ceiling speaker
• 7.75"W x 14.125"H x8.125"D (not including grille)
• French Cleats included for wall mounting
• magnetic 61A-SW Grille included (1/2" MDF)
• black or white satin finish

(PRICE PER PAIR)

Terms and Conditions

The Reference 61-AW is the angled version of the 61-W with an identical internal volume for perfect timbre matching. Whether you use the included French cleats or the threaded inserts, the 61-AW has you covered for your installation needs. The 61-AW is an elite performing compact speaker that will be sure to impress. This speaker is well suited as surrounds or height speakers. The 61-AW utilizes a single 6½-inch aluminum cone woofer and an proprietary AMT tweeter.

(Click to enlarge)

Reference 61-AW

SERIES

Reference Series On-Wall Speaker

SYSTEM TYPE

Sealed / 2-way Speaker

FREQUENCY RESPONSE

70-40k Hz (+/- 3 dB)

SENSITIVITY

87 dB (2.83V @ 1 Meter)

RECOMMENDED POWER

75-150 W

DRIVE UNITS

(1) 6-1/2" (165mm) cast aluminum basket, aluminum cone woofer (sliver or black-anodized)

(1) 1.38" X 1" (35mm x 25mm) AMT tweeter

TWEETER PROTECTION

Yes

CROSSOVER FREQUENCY

2700 Hz

CROSSOVER SLOPE

12 dB/Octave

IMPEDANCE

8 Ohms

CABINET DETAILS

High Density Fiberboard (HDF)

Satin Black Paint

7-3/4" W x 14-1/8" H x 8-1/8" D

(197mm W x 358mm H x 206mm D)

GRILLE DETAILS

Magnetic Grille w/ white or black fabric

7-3/4" W x 14-13/16" H x 1/2" D

(197mm W x 376mm H x 12mm D)

WEIGHT

11.75 lb (7.98 kg)

WARRANTY

10 Years

ACCESORIES

French Cleats
