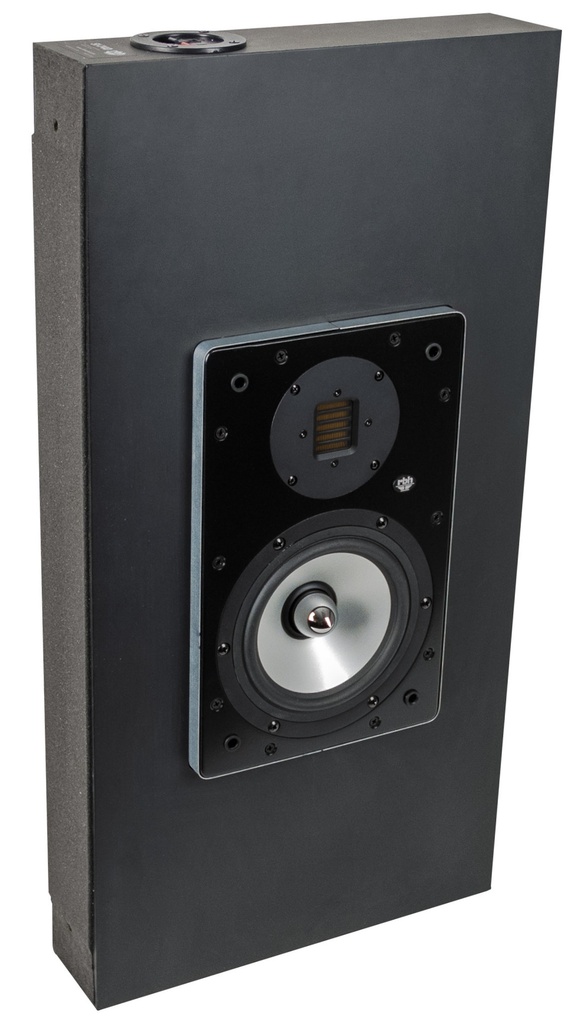

Reference 61-I Complete Set

(formerly SI-740/R)
Signature REFERENCE 2-way Baffle Assembly for in-wall speaker
• black satin finish
• 6.5" black-anodized phase plug woofers; AMT tweeter
• In-wall cabinet or Retrofit Bracket required / sold separately
• Fabric Grille optional / sold separately

(PRICE PER SINGLE)

Terms and Conditions

The Reference 61-I, the reference version of the 61-I, excels as main and surround speakers in an in-wall home theater system. Another example would be the use of 61-I as in-wall surround speakers to complement a pair of freestanding Signature Reference speakers.

(Click to enlarge)

Reference 61-I

SERIES

Reference Series | In-Wall Speaker

SYSTEM TYPE

Sealed / 2-way Speaker

DRIVE UNITS

(1) 6-1/2" (165mm) cast aluminum basket, aluminum cone woofer (sliver or black-anodized), with solid aluminum phase plug

(1) 1.38" X 1" (35mm x 25mm) AMT tweeter

FREQUENCY RESPONSE

60Hz-40kHz (±3dB)

SENSITIVITY

88dB (2.83V @ 1 Meter)

RECOMMENDED POWER

75-175 Watts

IMPEDANCE

8 Ohms

TWEETER PROTECTION

Yes

CROSSOVER FREQUENCY

2,700 Hz

CROSSOVER SLOPE

12dB/Octave

IN-WALL CABINET DETAILS

High Density Fiberboard (HDF)

Black Paint

14” x 28” x 3-1/2”

(356 x 711 x 89mm)

BAFFLE ASSEMBLY DETAILS

High Density Fiberboard (HDF)

Black Satin Paint

8” x 12-7/8” x 3-1/8"

(203 x 327 x 80mm)

GRILLE DETAILS

Black or White Fabric

FINISHED DIMENSIONS

14” x 28” x 4”

(356 x 711 x 102mm)

WEIGHT (total)

25 lbs (11.34 kg)

WARRANTY

*10 year limited

COMPONENTS

IN-WALL CABINET

61-I In-wall Cabinet

BAFFLE ASSEMBLY

61-I Baffle Assembly

GRILLE OPTIONS

61-I Grille Black (fabric)

61-I Grille White (fabric)

RETROFIT OPTIONS

61-I RB (retrofit bracket)

FB-W (foam back-box)

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

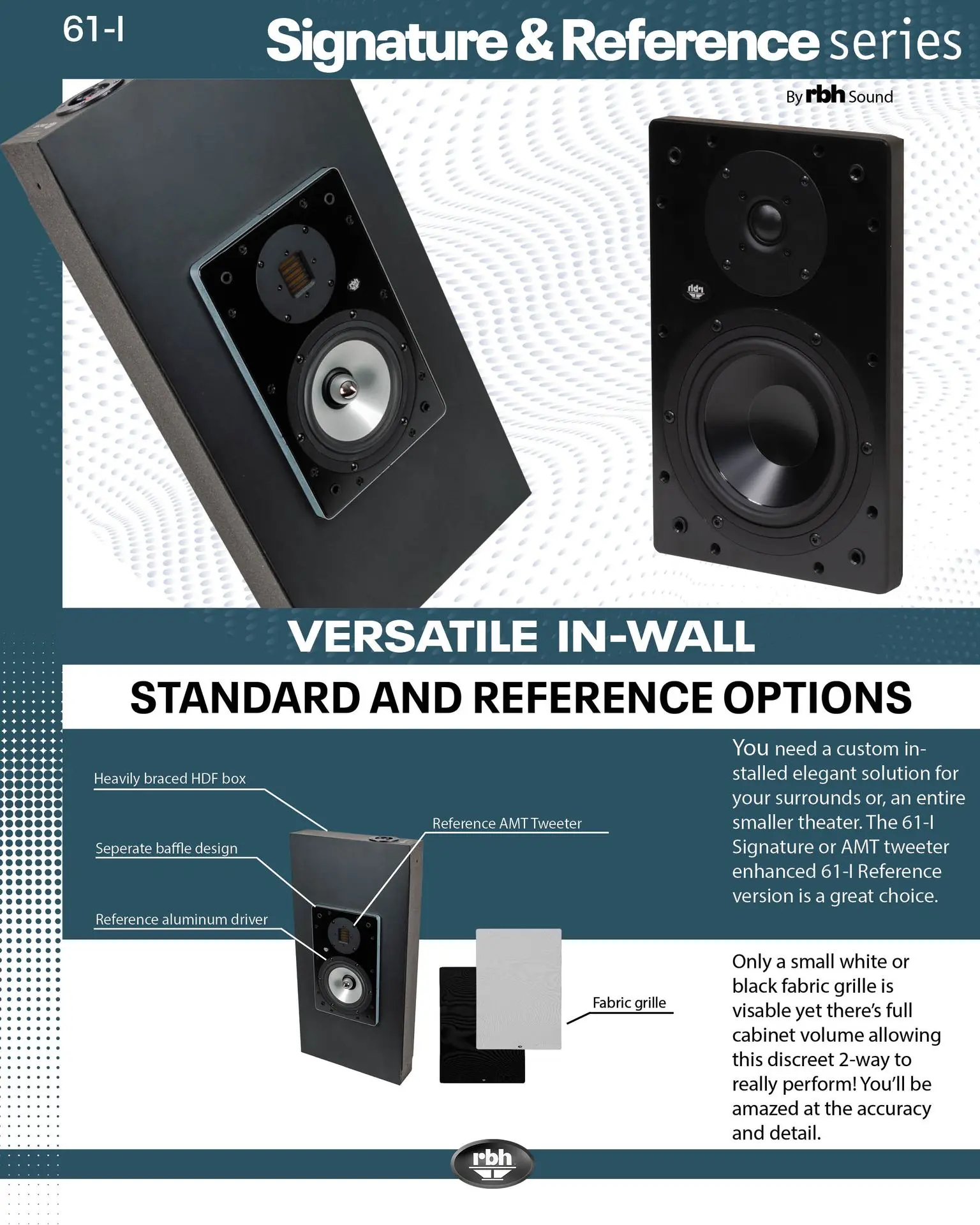

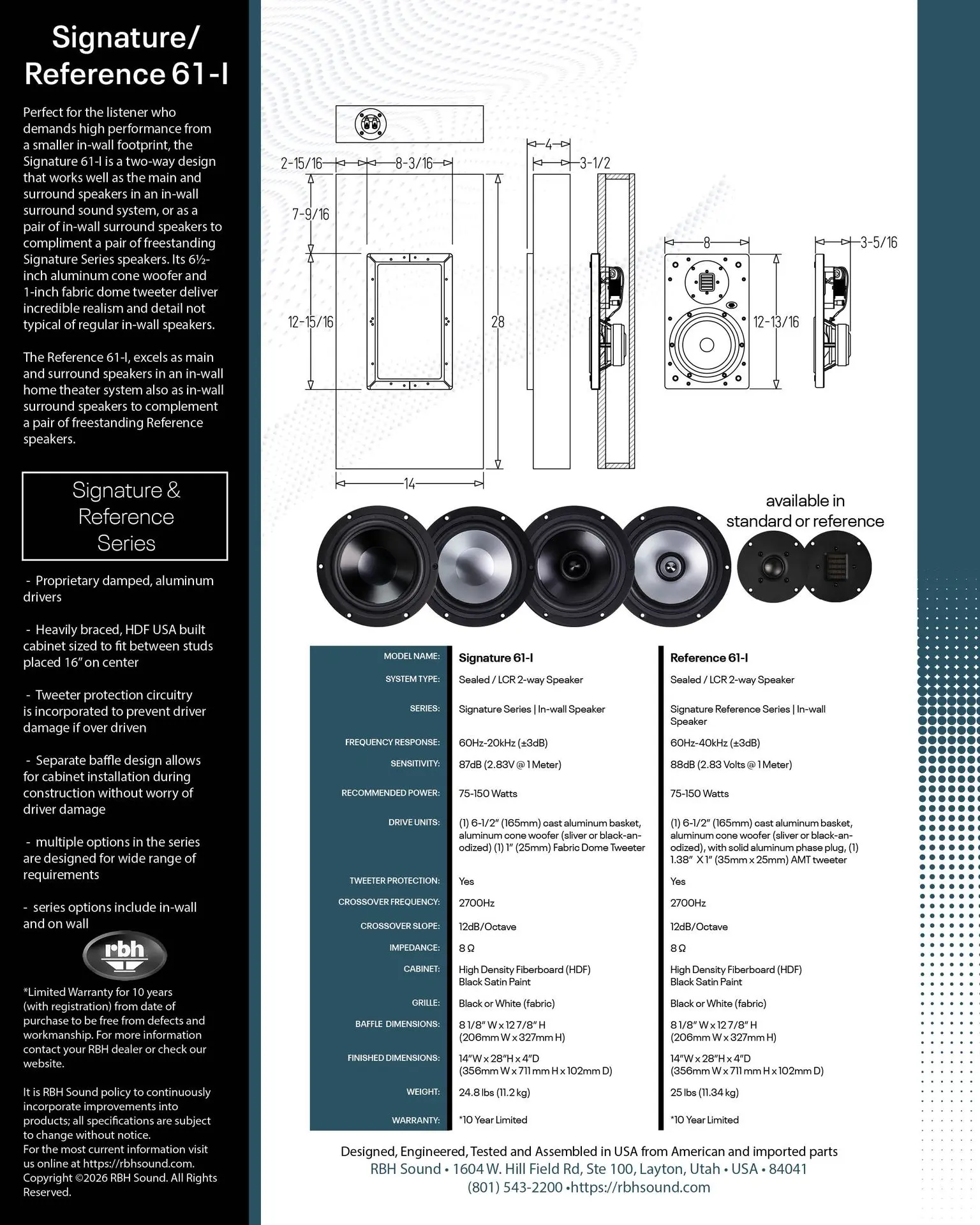

Brochure
