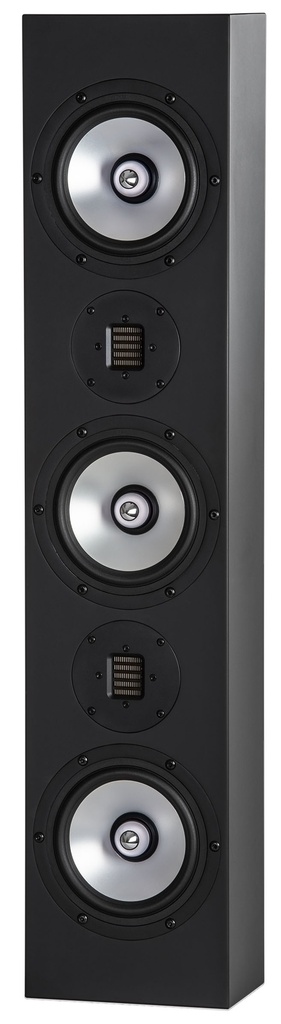

Reference 632-W

Reference 632-W

https://www.rbhsound.com/web/image/product.template/28738/image_1920?unique=56c237d

Reference on-wall, dual mode speaker (5" deep cabinet)
• single or dual channel mode available
• 7.75"W x 35.65"H x5"D (not including grille)
• French Cleats included for wall mounting
• magnetic 663-SW Grille included (1/2" MDF)
• black or white satin finish

(PRICE PER SINGLE)

Contact Us

Terms and Conditions

Take it to the next level with even greater power handling, sensitivity, and versatility all while having a minimalistic sleek look. The Reference 632-W is next level! All the finesse of our reference speakers in an on wall package that looks great in any room.

(Click to enlarge)





Reference 632-W
SERIES
Reference Series | On-Wall Speaker
SYSTEM TYPE
Sealed / LCR Dual Channel Speaker
FREQUENCY RESPONSE
50-40k Hz (+/- 3 dB)
SENSITIVITY
91 dB-Main, 88dB-Center, 93dB-Combined (2.83V @ 1 Meter)
RECOMMENDED POWER
75-250 Watts (Main), 75-175 Watts (Center) 75-450 Watts (Combined)
DRIVE UNITS
(3) 6-1/2" (165mm) cast aluminum basket, aluminum cone woofer (sliver or black-anodized), with solid aluminum phase plug
(2) 1.38" X 1" (35mm x 25mm) AMT tweeter
CROSSOVER FREQUENCY
2700 Hz
CROSSOVER SLOPE
24dB/Octave, 12 dB/Octave
IMPEDANCE
6 Ohms-Main, 8 ohms-Center 4 ohms-Combined
CABINET
High Density Fiberboard (HDF)
Satin Black Paint
CABINET DIMENSIONS (WxHxD)
7-3/4" x 35-11/16" x 5"
(197 x 907 x 127mm)
GRILLE
Magnetic Grille (black or white fabric)
7-3/4" x 35-11/16" x 1/2"
(197 x 907 x 12mm)
WEIGHT
27.85 lbs (12.63 kg)
WARRANTY
5 Years
ACCESSORIES (optional)
French Cleats
(2 sets to wall mount)
