Reference 64-SB

2-way 3-channel speaker-bar (non-powered)
• 3-channel or wide dispersion center channel configuration options
• Features 4x 6.5" Reference Aluminum Cone woofers; 3x Reference AMT tweeters

(PRICE PER SINGLE)
• Comes in sizes 57inch, 66inch, or 75inch or specify custom length (57-96")

Terms and Conditions

Building one the might and beauty of the Signature 64-SB, the Reference 64-SB represents a powerhouse of speaker technology and unbridled fidelity. You'll be amazed at the imaging and soundstaging capabilities that extend beyond the physical constraints of the speaker bar. Designed to perfectly match with our Reference tier of 6.5 inch on-wall option.

(Click to enlarge)

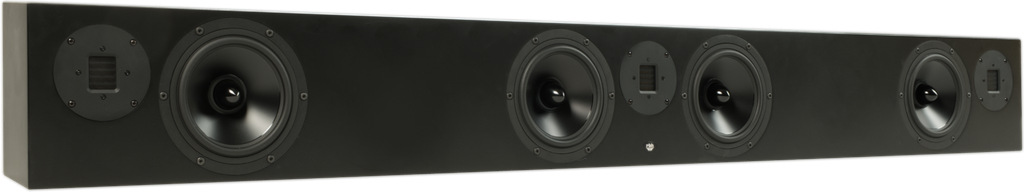

Reference 64-SB

SERIES

Reference Series On-Wall Soundbar Speaker

SYSTEM TYPE

Signature On-wall Speaker Bar

DRIVE UNITS

(4) 6-1/2" (165mm) cast aluminum basket, black or silver anodized cone, solid metal phase plug

(3) 1.38" X 1" (35mm x 25mm) AMT tweeter

FREQUENCY RESPONSE

70-40k Hz (+/- 3 dB)

SENSITIVITY

88 dB-Main, 91dB-Center, 93dB-Combined (2.83V @ 1 Meter)

RECOMMENDED POWER

75-200 Watts Main, 75-250 Watts Center, 100-600 Watts Combined

IMPEDANCE

8 Ohms Main, 6 Ohms Center, 4 Ohms Combined

CROSSOVER FREQUENCY

2700 Hz

CROSSOVER SLOPE

24 dB/Octave

CABINET DETAILS

High Density Fiberboard (HDF)

Black or White Satin Paint

GRILLE DETAILS

Magnetic Grille w/ white or black fabric

FINISHED DIMENSIONS

57" x 7-3/4" x 5"

(1448 x 197 x 127mm)

WEIGHT

36.4 lbs+ (16.51 kg)

WARRANTY

*10 year limited

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

Brochure

BUILT IN THE USA

Engineering. Design. Performance.

For over 50 years, RBH Sound has designed and built loudspeakers in the USA with a singular focus - accurate sound reproduction, reliability, and timeless performance. Every product is engineered with premium components and crafted with pride to deliver a listening experience that exceeds expectations.
