Reference 815-L

Reference 815-L

https://www.rbhsound.com/web/image/product.template/31836/image_1920?unique=1cf0158

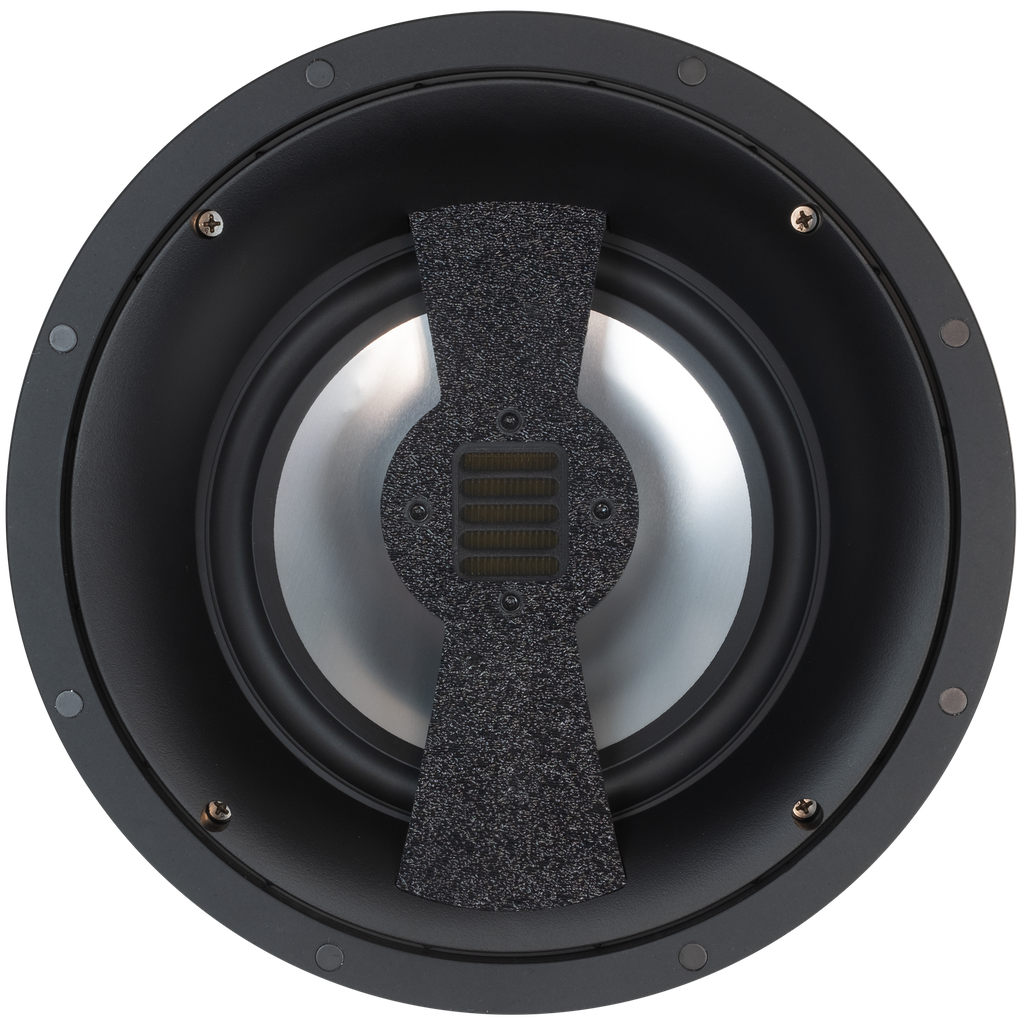

Reference 2-way in-ceiling speaker, Visage frameless design
• 8" silver aluminum woofers; Reference AMT Tweeter

(PRICE PER SINGLE)

Contact Us

Terms and Conditions

Utilizing the very same technologies in the Reference 815, the "L" variant offers added mounting flexibility with the built in 15 degree angle.  Hear movies and music like never before with output levels to keep up with your large bed layer.  Cutout diameter is: 10"


(Click to enlarge)





Reference 815-L
SERIES
Reference Series | In-Ceiling Speaker
SYSTEM TYPE
In-ceiling 2-way
DRIVE UNITS
8" (200mm) Aluminum Cone Signature Series Woofer
AMT Tweeter
FREQUENCY RESPONSE
45Hz-40kHz ± 3dB
SENSITIVITY
91dB
RECOMMENDED POWER
50-200 Watts
IMPEDANCE
8 Ohms
TWEETER PROTECTION
Yes, self resetting poly-switch
CROSSOVER FREQUENCY
2,700 Hz
CROSSOVER SLOPE
18dB/Octave
IN-WALL CABINET DETAILS
Black ABS Frame, Steel Perforated Basket, Dog-Leg mount
GRILLE DETAILS
Magnetically Attached White Stainless-Steel
FINISHED DIMENSIONS
11" Dia x 5-3/4" D
(279 Dia x 146mm D)
WEIGHT (total)
6.45 lbs (2.92kg)
WARRANTY
*10 year limited
COMPONENTS
GRILLE OPTIONS
Round, White or Black in Stainless Steel
