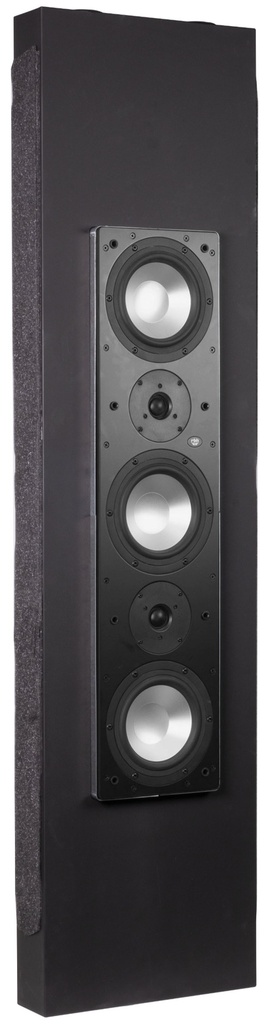

Signature 632-I Complete Set

Signature 632-I Complete Set

https://www.rbhsound.com/web/image/product.template/31431/image_1920?unique=2c58708

Signature 2-way Complete Set in-wall speaker
• black satin finish
• triple 6.5"" black-anodized aluminum woofers; dual soft dome tweeters
• In-wall cabinet included
• Grille optional

(PRICE PER SINGLE)

Contact Us

Terms and Conditions

For installations where a center channel is intentionally removed from a surround system to allow for design requirements or otherwise cannot be used, the SI-663 is the perfect high-performance solution. A pair of these in-wall speakers can eliminate the need for a dedicated center channel when wired for dual-channel operation. For situations where a third SI-663 can be used as a dedicated center channel, the trio can be wired in standard configuration, allowing each to discretely provide left, center, or right channels for a seamless front sound stage.

(Click to enlarge)





Signature 632-I
SERIES
Signature Series | In-Wall Speaker
SYSTEM TYPE
Sealed / LCR Dual Channel 2-way Speaker
DRIVE UNITS
(3) 6-1/2" (165mm) cast aluminum basket, aluminum cone woofer (sliver or black-anodized)
(2) 1" (25mm) Fabric Dome Tweeter
FREQUENCY RESPONSE
55Hz-20kHz (±3dB)
SENSITIVITY
90dB Main, 88dB Center, and 92dB Combined (2.83V @ 1 Meter)
RECOMMENDED POWER
75-220 Watts Main, 75-150 Watts Center and 75-400 Watts Combined
IMPEDANCE
8 Ohms Main, 6 Ohms Center and 4 Ohms Combined
TWEETER PROTECTION
Yes
CROSSOVER FREQUENCY
2,700 Hz
CROSSOVER SLOPE
12dB/Octave
IN-WALL CABINET DETAILS
High Density Fiberboard (HDF)
Black Paint
14” x 56” x 3-1/2”
(356 x 1422 x 89mm)
BAFFLE ASSEMBLY DETAILS
High Density Fiberboard (HDF)
Black Satin Paint
8” x 32” x 3-1/8"
(203 x 812 x 80mm)
GRILLE DETAILS
Black or White Fabric
FINISHED DIMENSIONS
14” x 56” x 4”
(356 x 1422 x 102mm)
WEIGHT (total)
59 lbs (26.76 kg)
WARRANTY
*10 year limited
COMPONENTS
IN-WALL CABINET
632-I In-wall Cabinet
BAFFLE ASSEMBLY
632-I Baffle Assembly
GRILLE OPTIONS
632-I Grille Black (fabric)
632-I Grille White (fabric)
RETROFIT OPTIONS
N/A
N/A

Brochure


BUILT IN THE USA

Engineering.  Design.  Performance.

For over 50 years, RBH Sound has designed and built loudspeakers in the USA with a singular focus - accurate sound reproduction, reliability, and timeless performance.  Every product is engineered with premium components and crafted with pride to deliver a listening experience that exceeds expectations.
