Signature 643-I Complete Set

https://www.rbhsound.com/web/image/product.template/31753/image_1920?unique=d1e012a

Signature 2-way Complete Set in-wall speaker
• black satin finish
• quad 6.5"" black-anodized aluminum woofers; triple soft dome tweeters
• In-wall cabinet included
• Grille optional

Contact Us

Terms and Conditions

The Signature 643-I is the ultimate in-wall speaker for larger theaters and listening rooms. Capable of producing high sound pressure levels, the 643-I features four 6½-inch aluminum cone woofers mated with three 1-inch fabric dome tweeters.  Best used in rooms with multi-tiered seating or if you desire maximum output and high sensitivity.

(Click to enlarge)

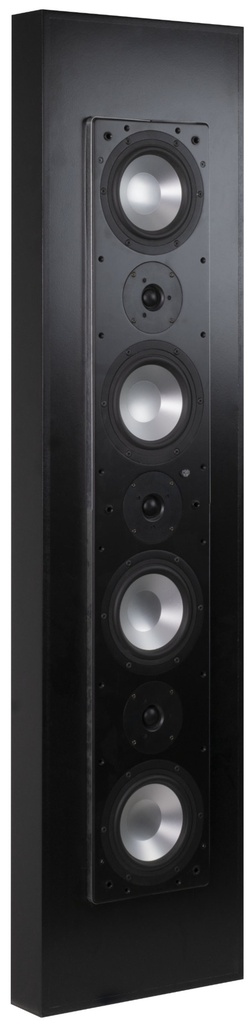

Signature 643-I
SERIES
Signature Series | In-Wall Speaker
SYSTEM TYPE
Sealed / LCR 2-way Speaker
DRIVE UNITS
(4) 6-1/2" (165mm) cast aluminum basket, aluminum cone woofer (sliver or black-anodized)
(3) 1" (25mm) Fabric Dome Tweeter
FREQUENCY RESPONSE
45Hz-20kHz (±3dB)
SENSITIVITY
92dB (2.83V @ 1 Meter)
RECOMMENDED POWER
75-450 Watts
IMPEDANCE
4 Ohms
TWEETER PROTECTION
Yes
CROSSOVER FREQUENCY
2,500 Hz
CROSSOVER SLOPE
24 dB/Octave
IN-WALL CABINET DETAILS
High Density Fiberboard (HDF)
Black Paint
14” x 56” x 3-1/2”
(356 x 1422 x 89mm)
BAFFLE ASSEMBLY DETAILS
High Density Fiberboard (HDF)
Black Satin Paint
8” x 44” x 3-1/8"
(206 x 1118 x 80mm)
GRILLE DETAILS
Black or White Fabric
FINISHED DIMENSIONS
14” W x 56” H x 4” D
(356 x 1423 x 102 mm)
WEIGHT (total)
62 lbs (28.12 kg)
WARRANTY
*10 year limited
COMPONENTS
IN-WALL CABINET
643-I In-wall Cabinet
BAFFLE ASSEMBLY
643-I Baffle Assembly
GRILLE OPTIONS
643-I Grille Black (fabric)
643-I Grille White (fabric)
RETROFIT OPTIONS
N/A
N/A
