Reference 12

Reference Freestanding Subwoofer
• Downfiring port
• 15"W x 18.6875"H x 20.875"D (not including grille)
• magnetic grille included (3/4" MDF)
• black or white satin finish
• 800 Watt DSP Controlled internal amplifier or external amplifier (DA series amplifiers recommended)

(PRICE PER SINGLE)

Terms and Conditions

Built to deliver exceptional amounts of deep and powerful bass with precise control in a manageable size, the Reference 12 powered subwoofer is a welcome and conveniently placed “must have” to complete your home theater or any listening experience. Whether you go all out with our DA-1202DSP amplifier or have the amp built in, the power is in your hands.

(Click to enlarge)

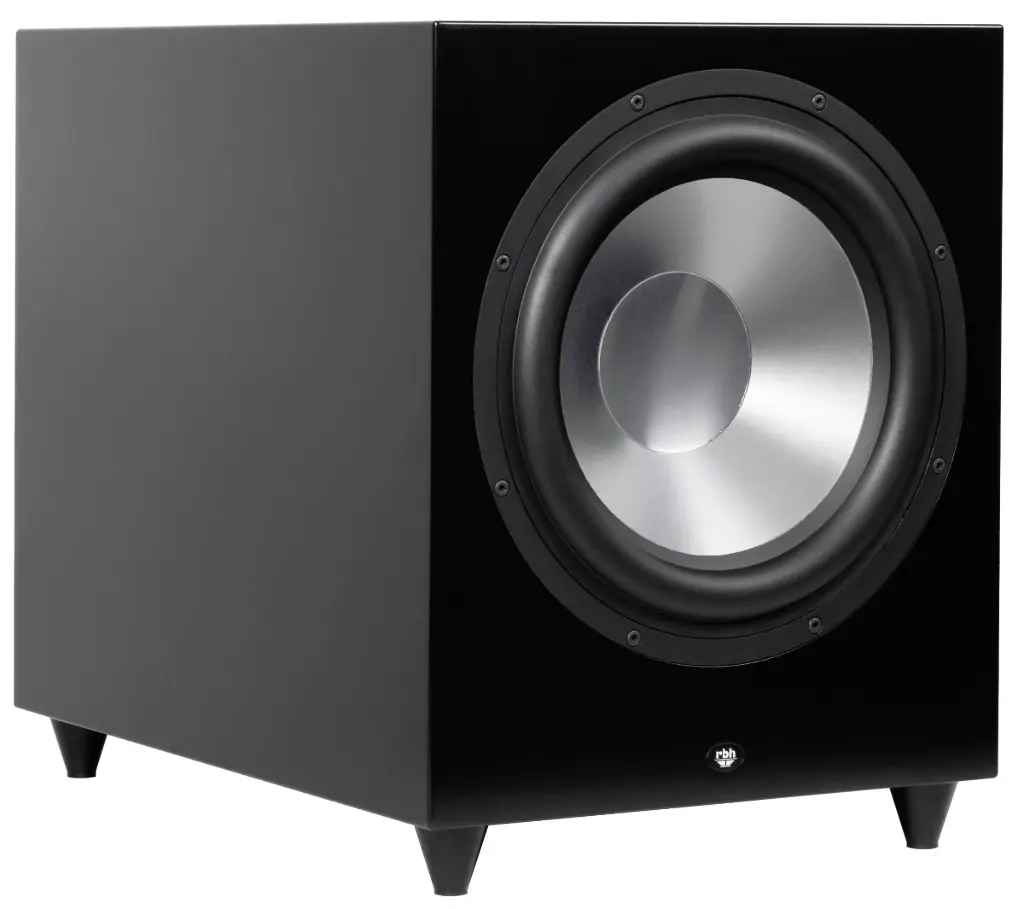

Reference 12

SERIES

Reference Series | Subwoofers

SYSTEM TYPE

Vented, Cabinet, non-powered

DRIVE UNITS

(1) 12" (305mm) Reference Aluminum Cone Subwoofer

NATIVE FREQUENCY RESPONSE

26Hz-120Hz (±3dB)

FREQUENCY RESPONSE when using DA Series Subwoofer Amplifier

22-150Hz (±3dB)

SENSITIVITY

87dB

AMPLIFIER TYPE

(requires external amplification)

AMPLIFIER POWER

800 Watts

VOLTAGE

RECOMMENDED POWER

800 Watts

IMPEDANCE

6Ω

CROSSOVER FREQUENCIES

CROSSOVER SLOPE

12dB/Octave

LFE INPUT

RCA/XLR

LFE OUTPUT

PHASE CONTROL

DSP controled

CABINET DETAILS

High Density Fiberboard (HDF)

Black or White Satin Paint

GRILLE DETAILS

Black or White Fabric / Magnet attached

FINISHED DIMENSIONS

15" W x 18-11/16" H x 21-3/16" D

381 W x 474 H x 538 D mm

WEIGHT

58.5 lbs (26.53kg)

WARRANTY

*10 year limited

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

Brochure

BUILT IN THE USA

Engineering. Design. Performance.

For over 50 years, RBH Sound has designed and built loudspeakers in the USA with a singular focus - accurate sound reproduction, reliability, and timeless performance. Every product is engineered with premium components and crafted with pride to deliver a listening experience that exceeds expectations.
