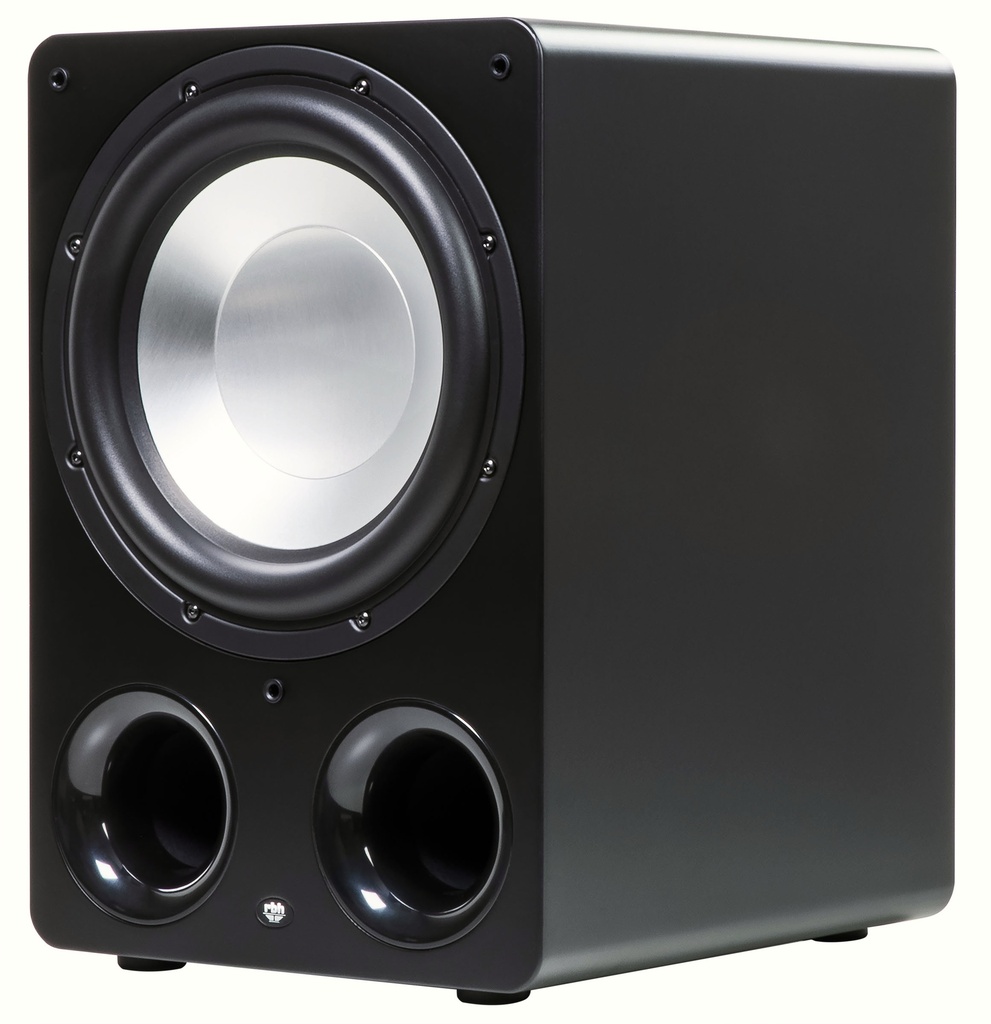

Signature 12

12" non-powered subwoofer
• black or white satin finish
• 500 Watt Internal amp or powered externally

(PRICE PER SINGLE)

Terms and Conditions

Designed to reproduce accurately defined bass, the Signature 12 adds deep bass to any audio or home theater system. The Signature 12's matt black or white cabinet features intricate internal bracing and provides the perfectly tuned environment for its high-power 12-inch aluminum cone subwoofer. The 12 can be configured for external amplification or with an internal 500 Watt amp, we recommend using the RBH DA-1202 subwoofer amplifiers for powering this subwoofer externally.

(Click to enlarge)

Signature 12

SERIES

Signature Series Subwoofers

SYSTEM TYPE

Vented Subwoofer

DRIVE UNITS

12" (305mm) Aluminum Cone

FREQUENCY RESPONSE

27Hz-150Hz ± 3dB

FREQUENCY RESPONSE when using DA Series Amplifier

25Hz-150 Hz ±3dB*

SENSITIVITY

88dB(2.83V@ 1 meter)

AMPLIFIER TYPE

Internal or External

AMPLIFIER POWER

500W

VOLTAGE

N/A

RECOMMENDED POWER

250-600 Watts

IMPEDANCE

6 Ohms

CROSSOVER FREQUENCIES

40-180hz

CROSSOVER SLOPE

12dB/Oct

LFE INPUT

Yes

LFE OUTPUT

Yes

LINE LEVEL INPUT

Yes

PHASE CONTROL

Variable

CABINET DETAILS

High Density Fiberboard (HDF)

Satin Black or White Paint

GRILLE DETAILS

Black Fabric / Tree Locks

FINISHED DIMENSIONS

13-1/2" x 20" x 16-7/8"

(343 x 507 x 429mm)

WEIGHT

47 lbs. (21.32 kg.)

WARRANTY

*10 year limited

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

Brochure
