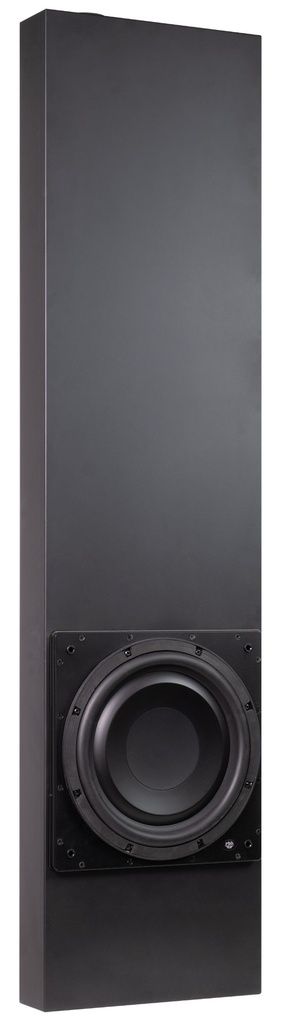

Signature 12-3I Complete Set

Complete Set for Signature 12" In-wall Subwoofer
• black satin finish
• In-wall cabinet included;
• Grille optional

(PRICE PER SINGLE)

Terms and Conditions

The spiritual successor to our acclaimed SI-10, the Signature 12-3I pushes the envelope further by utilizing a 12 inch high performance driver in a cabinet that is designed to fit in between standard wall studs. You'll be amazed at the performance of this low profile option when combined with our powerful DSP controlled DA amplifiers.

(Click to enlarge)

Signature 12/3I

SERIES

Signature Series | Installed Subwoofers

SYSTEM TYPE

Sealed / in-wall

DRIVE UNITS

(1) 12" (305mm) Black Polypropylene Slim Cone

FREQUENCY RESPONSE

40Hz-200Hz (±3dB)

FREQUENCY RESPONSE when using DA Series Subwoofer Amplifier

30Hz-200Hz (±3dB) (-6dB 22Hz)

SENSITIVITY

86dB (2.83V @ 1 Meter)

RECOMMENDED POWER

100-600 Watts
(DA-Series Subwoofer amplifiers recommended)

IMPEDANCE

4 Ohm

IN-WALL CABINET DETAILS

High Density Fiberboard (HDF)

BAFFLE ASSEMBLY DETAILS

High Density Fiberboard (HDF)

Black Satin Paint

13-3/8” W x 13-3/8" H

(340 x 340mm)

GRILLE DETAILS

Black or White Fabric

FINISHED DIMENSIONS

14” x 56” x 3-1/2”

(356 x 1423 x 89mm )

WEIGHT

41 lbs. (18.6 kg.)

WARRANTY

*10 year limited

COMPONENTS

IN-WALL CABINET

BAFFLE ASSEMBLY

GRILLE OPTIONS

12-3I Grille White or Black

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

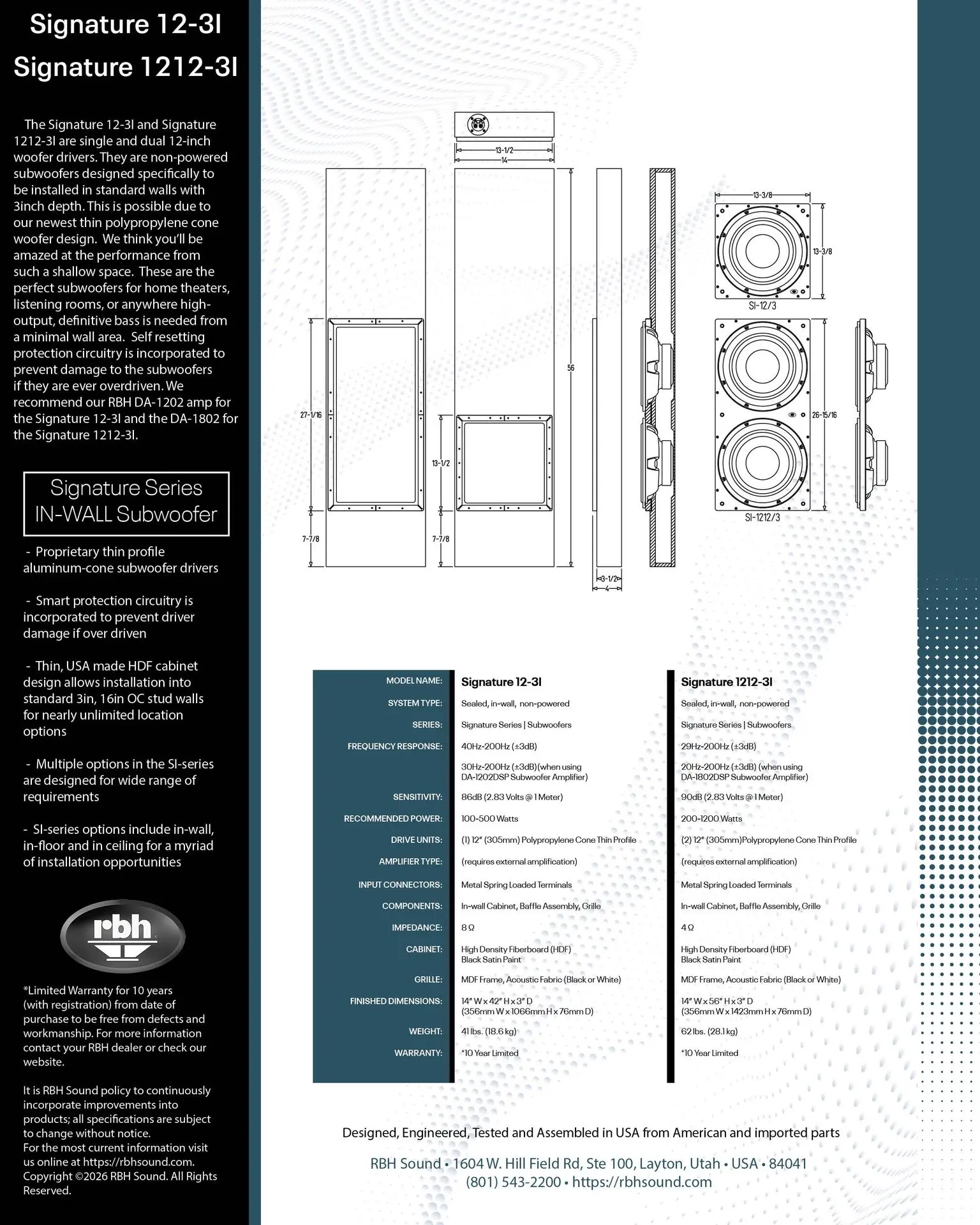

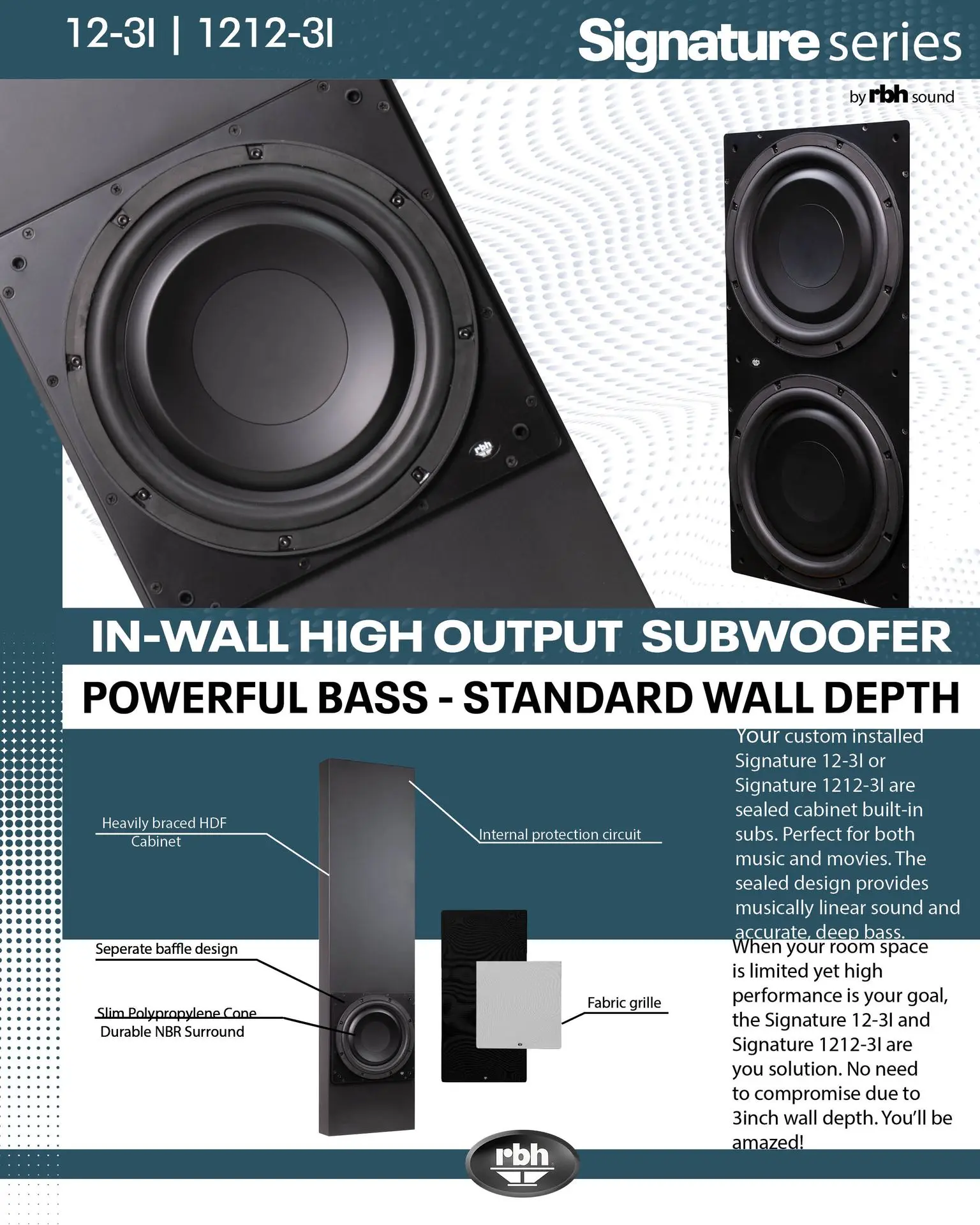

Brochure
