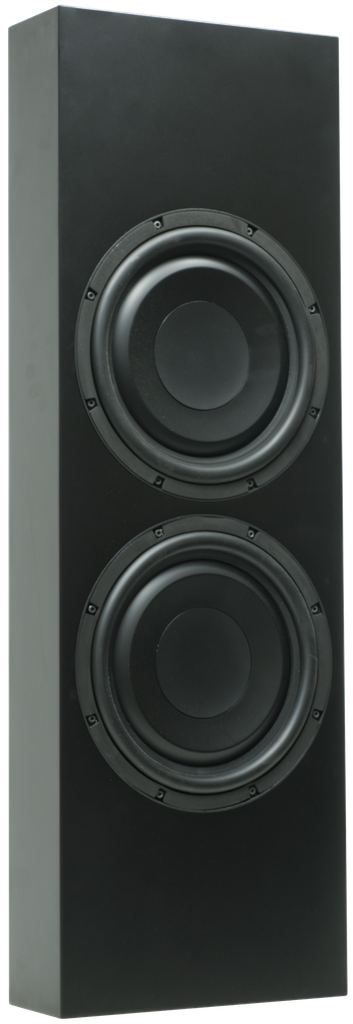

Signature 12-W
Passive/Active 12" On-wall Subwoofer
• black satin or white satin finish
• In-wall cabinet included
• Grille included
(PRICE PER SINGLE)
Sleek and powerful, Signature 12-W is designed to complement any home theater with negligible floor space taken. Whether you're adding a space saving subwoofer, or you are getting into wave forming, the 12-W is here to fit your needs. When paired with our DSP controlled DA amplifiers, unlock the potential of the 12-W.
TECHNICAL SPECIFICATIONS
Model Name | Signature 12-W |
| System Type | Signature On-wall Subwoofer |
| Series | Signature |
| Frequency Response | 35Hz-200Hz (±3dB) (-7dB @ 20Hz) |
| Sensitivity/Amplifier Power | 86dB |
| Impedance | 4Ω |
| Recommended Power | 100-500 Watts |
| Crossover Frequencies | 40Hz-150Hz (variable, RBH Amp) |
Crossover Slope | 6-84dB/Octave (in software) |
Features | Variable Phase (delay in software), XLR Input & Output (via RBH amplifier) |
| Drivers |
|
| Enclosure | HDF |
| Finish | Satin Black or Satin White |

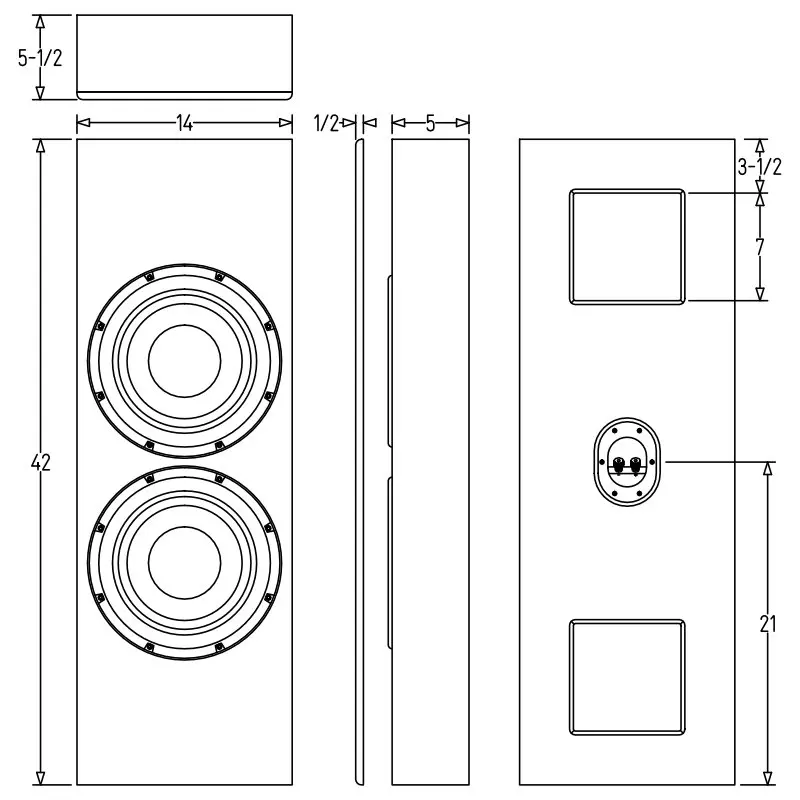

| Dimensions (H x W x D) | 42" x 14" x 5-3/4" (1066 x 356 x 146mm) |
| Weight | 45.9lbs (20.82kg) |
| Warranty | 10 Year Limited speaker |
