Signature 1212

Dual 12" Front ported subwoofer
• black or white satin finish
• 800 Watt DSP controlled Internal amp or external amplification

(PRICE PER SINGLE)

Terms and Conditions

The Signature 1212 combines style with brute strength and precision. Dual 12-inch aluminum cone woofers and front-firing vent work in unison to outperform subwoofers costing much more. The 1212 subwoofer can be configured with an outboard subwoofer amplifier or an internal 800 Watt amp. The 1212 is designed to support larger home theaters and will do so with a relatively small footprint.

(Click to enlarge)

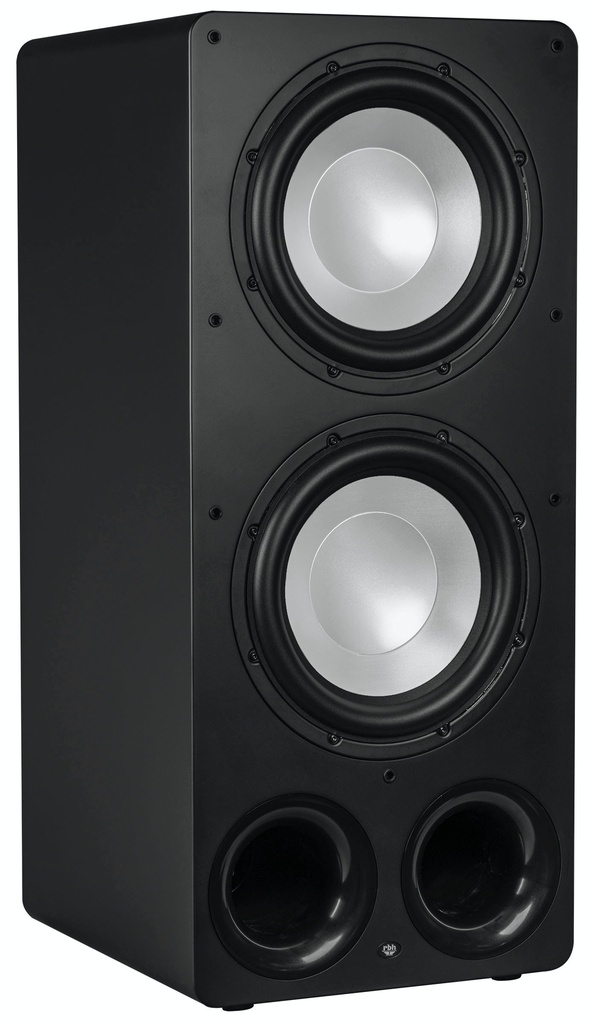

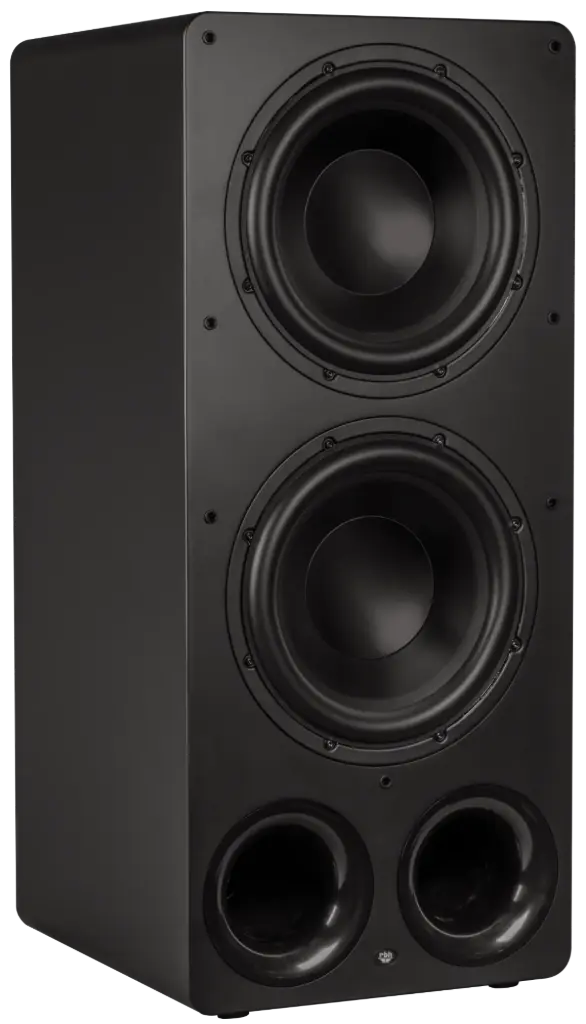

Signature 1212

SERIES

Signature Series Subwoofers

SYSTEM TYPE

Vented, Non-Powered Subwoofer

DRIVE UNITS

(2) 12" (305mm) Aluminum Cone

FREQUENCY RESPONSE

25Hz-150Hz ±3dB*

FREQUENCY RESPONSE when using DA Series Amplifier

20Hz-150 Hz ±3dB*
Powered by optional DA-Series amplifier

SENSITIVITY

92dB(2.83V@ 1 meter)

AMPLIFIER TYPE

(requires external amplification)

AMPLIFIER POWER

N/A Externally Dependant

VOLTAGE

N/A Externally Dependant

RECOMMENDED POWER

250-1200 Watts

IMPEDANCE

4 Ohms

CROSSOVER FREQUENCIES

N/A Externally Dependant

CROSSOVER SLOPE

N/A Externally Dependant

LFE INPUT

LFE OUTPUT

LINE LEVEL INPUT

PHASE CONTROL

N/A Externally Dependant

CABINET DETAILS

High Density Fiberboard (HDF)

Satin Black or White Paint

GRILLE DETAILS

Black Fabric / Tree Locks

FINISHED DIMENSIONS

17.875” x 35.9375” x 15.75”

913 x 454 x 400mm

WEIGHT

103 lbs. (46.72 kg)

WARRANTY

*10 year limited

If you would like to submit a comment about this product or customer service and have it posted, please send your comments to: info@rbhsound.com

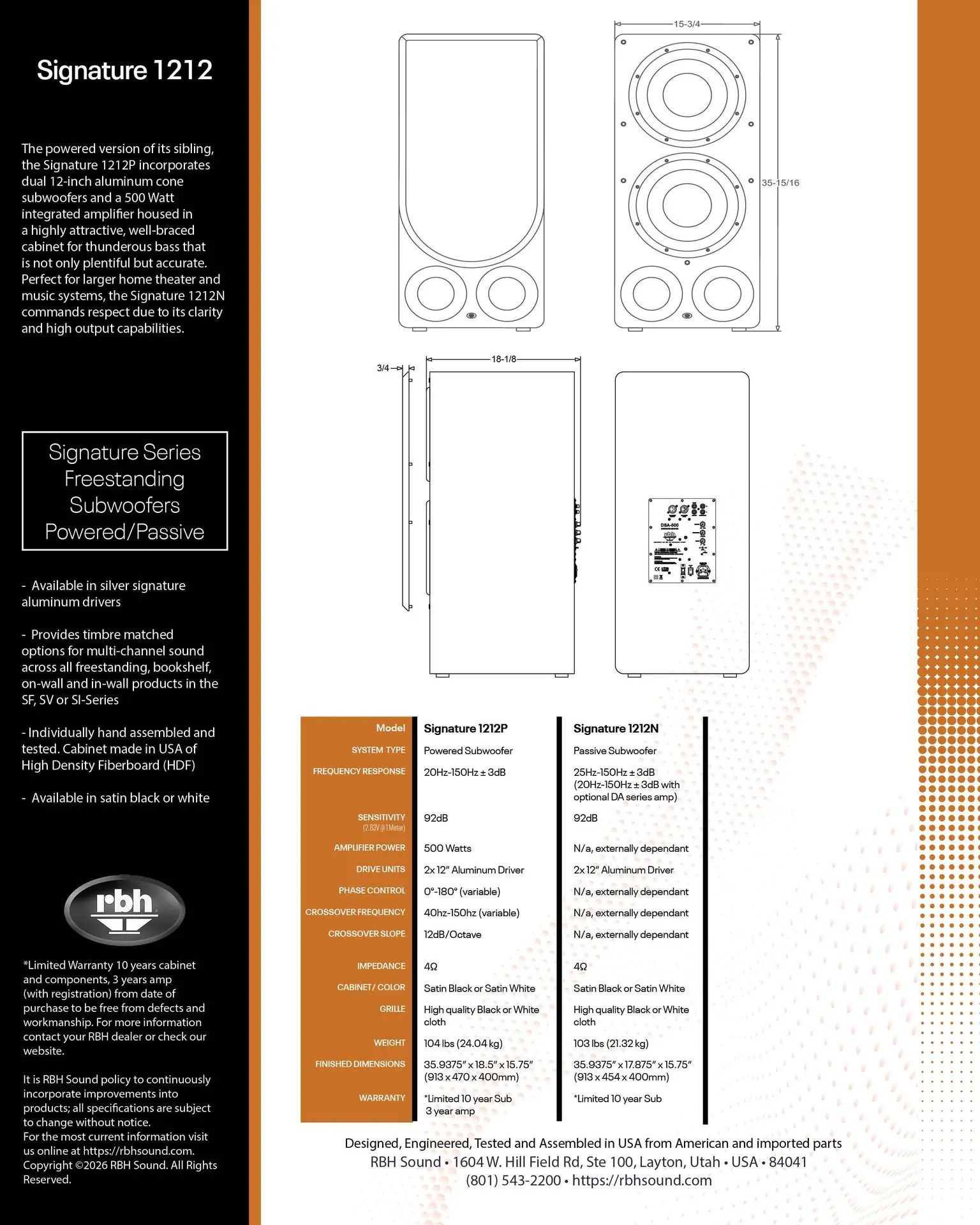

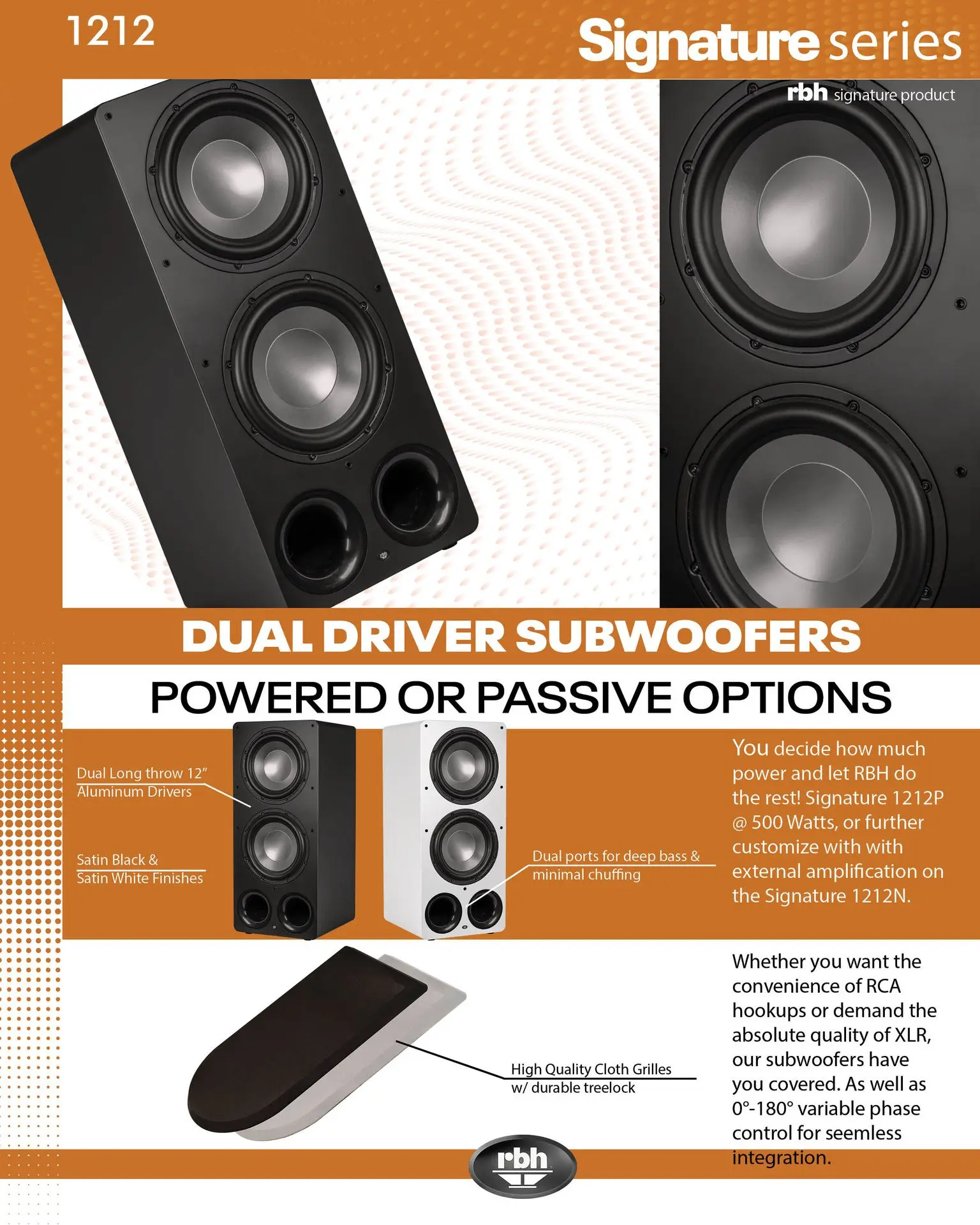

Brochure
